Payment & Shipping Terms:
|Output Voltage:||110-380V||Load Power:||1000000W|
|Nominal AC Frequency:||50Hz/60Hz||Solar PV Panels:||4000pcs 250w Polycrystalline Solar Panels|
|Inverter:||50 Sets 20KW Grid Tied Solar Inverter||Mounting Brackets:||Depending On The System Type|
on grid solar power system,
marine solar panel mounting systems
1MW Utility Scale Solar Power Plant Accurate Mounting 110V - 380V
1> Utility Scale Solar System Operation Steps
2> Project Feasibility Consultation
Our tried and tested development and planning process covers every detail of the project to ensure there are no surprises later on. This includes detailed location analysis, acquiring necessary approvals and designing the optimum technical configuration.
We do the hard work up-front in order to provide an accurate timeline and budget from the start.
3> Financial Consultation
Our team of specialist advisers are available to guide you through the process of financing your project. We have developed strong working relationships with a number of financial institutions and are familiar with all of the options currently available.
financing your project. We have developed strong working relationships with a number of financial institutions and are familiar with all of the options currently available.
We will build your project based on a bank promissory note for finance and a 30% deposit. Payment following completion helps to minimize risk and makes loan negotiations significantly easier.
4> Project Design
Our engineering team will technically evaluate your project taking into account technological and environmental constraints. We will advise you on the most reliable use of materials and components to ensure a high yield and low maintenance installatio for years to come.We work hard to provide accurate plans, costings and timelines.
Budegets and Timelines
Operational and mantainence costing
5> Project Installation
Our qualified engineers are accustomed to working on project sites around the world. They work hard to stay on schedule and are available to consult at any stage.
Site Inspection and Acceptance
Construction is not complete until you have persoanlly inspected the site and given your approval.
6> Project Commissioning
Ensuring that the power from your project can be accepted into the local grid means ensuring a secure on your investment.Our engineer understand this perfectly and work with grid operator ro make sure your output meets their requirements.
Leading a Technology Revelution
New advances in"inteligent control units" mean that there is no longer any difficulty in integrating renewable generated power into grid designed for use with fossil fuels. There is absolutely no reason why solar panel cannot provide a significant contribution to the energy mix of every country, provide cheap and abudant power.
7> Operation and Maintenance Training
Now that your plant is up and running, it is important to keep it that way. We train your workers in plant operations and maintenance in order to make sure you get the optimum output well into the future.
We cooperate with academics and specialists in the field to design training programs that are comprehensive and up to date.
8> System Configuarations
|Solar PV panels||ZCP6-60P-250W||4000|
|Grid Tied Solar Inverter||20KW||50|
|Mounting Brackets||Ground mounting||1|
|DC Combinet||DC SPD 1000V||50|
|AC Combinet||Weather proofed IP67||4|
|SCADA System||Wifi monitor||1|
|Ground earth cable||6.S.q.mm||10000|
|Ground eatth clamp||Copper with screws||8000|
|DC PV connection cable||4/6 S.q. m||10000|

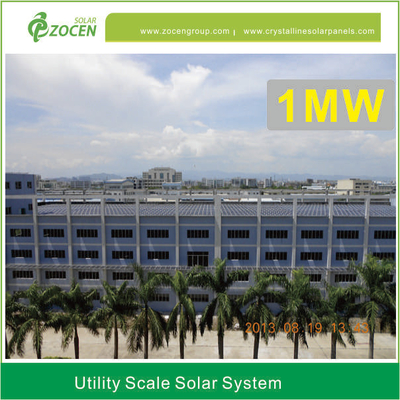

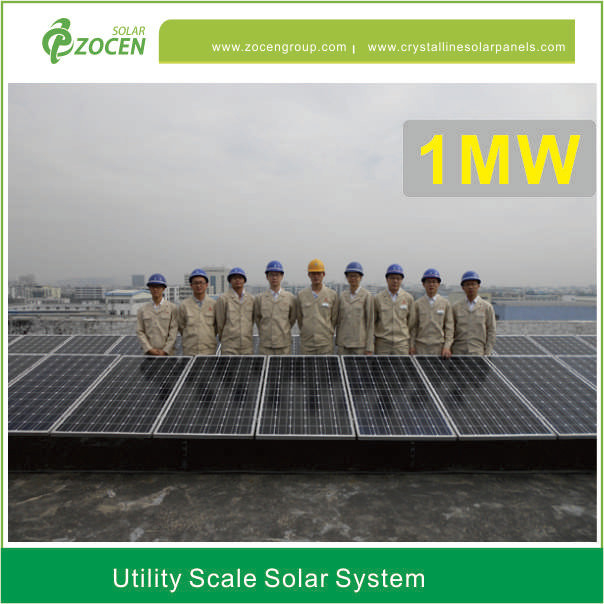

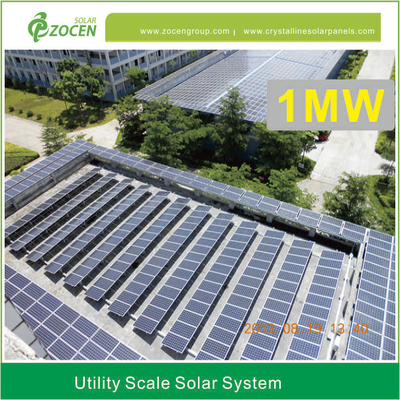

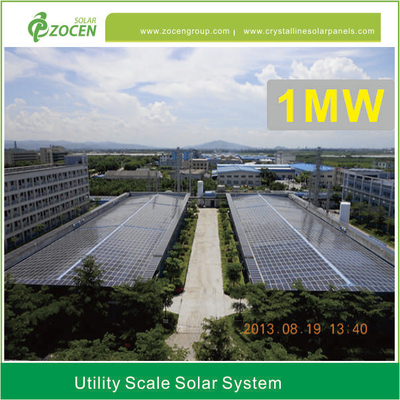

9> Project list
10> A Trusted Solar Solution Provider
Quality is ingrained in all of our services. We choose the highest quality components and demand the highest construction standards. This quality centered approach enables us to provide long term guarantees on all of our installations.
Qualified and Experienced Experts
Our technical team is made up of fully qualified electrical power engineers who are fully experienced in photovoltaic power conversion systems. They work hard to create custom tailored solar solutions with superior efficiency and long lasting reliability.
7 Years of Success Around the World
We have more than 7 years of experience in building reliable and profitable solar plants on five continents. We have partnered with international corporations such as JA Solar, SMA, ABB and CHINT, to deliver plants in the Czech Republic, Slovakia, Romania, Turkey, Morocco, Italy, USA, China, Mozambique and South Africa.
