Amorphous Silicon Thin Film solar panel 100w to 110w in stock for cheap sale

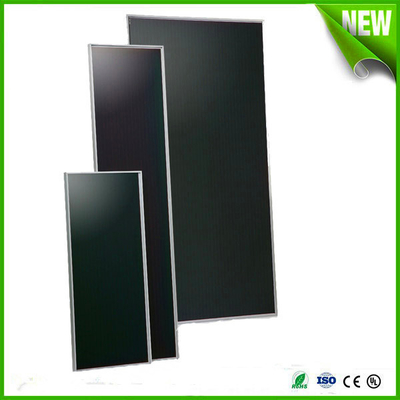

110W Amorphous Silicon Thin Film solar panel.

Mechanical pareneters:

Surface glass 3mm Float glass

Adhesive coating 1.1PVB

Btottom glass 3mmToughened glass

Connecting manner Backside

Back reflector N

Working temperature -40~80°C

Dimension& Weight:

Dimension(W*L) 1414mm*1114mm

Thickness 35mm

Weight framed 20.5kg frameless 19.8kg

Physical paremeters

Coefficient of heat transfer ~5W/ m²k

Transparent rate 40%

Thermal transmittance rate ~30%

Electrical parameter:

Pm 110Wp

Vmp 77v

Imp 1.42A

Isc 1.65A

Voc 99V

Maximum system voltage 1000V (TUV),600V (UL)

Light tresform efficiency 7.0%

Advantage:

Compared to Crystalline-si, the Thin Film module:

Lower cost, excellent weak light effect

Could induct astigmatism/reflected light

Could generate electricity even in rainy and cloudy days

Better high temperature performance

The total generating capacity is higher

Has no raw material limitation

Could be manufacured in mass, higher Voc.

Compared to normal thin film module:

Less degradation

Higher efficiencyya

Over 20 years’ life time

35MW/year
