Product Name: | Microwave Motion Sensor | IP Rating: | IP 20 |
---|---|---|---|
Operating Voltage: | 12Vdc(can Be Customized) | Detection: | Max(D×H):16m×6m |
HF System: | 5.8GHz ±75MHz, ISM Wave Band | Size (L×W×H): | 92x52x 25.5 Mm |
Approval: | CE & R&TTE | Operation Temperature: | -25℃~70℃ |
High Light: | led motion sensor,outdoor light motion sensor |

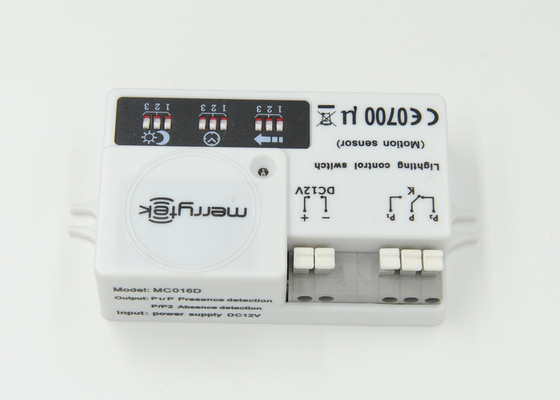

12v DC Input Dry Contact Microwave Motion Sensor MC016D Special For Solar Energy Garden Lamp Or Industrial Application
Description
Function:
ON-off function
Specifications:
Operating voltage |
12Vdc(can be customized) |
HF system |
5.8GHz±75MHz, ISM wave band |
Power consumption |
≤0.5W(standby), <1W(operation) |
Transmitting power |
<0.5mW |
Detection zone Max.(D x H) |
16m x 6m |
Motion detection |
0.5~3m/s |
Detection angle |
150°(wall installation) 360°(ceiling installation) |
IP rating |
IP20 |
Operation temperature |
-25℃~70℃ |
Hold time |
10s/30s/90s/3min/20min/30min |
Detection sensitivity |
10%25%/50%/75%/100% |
Daylight sensor |
5lux / 10lux / 30lux / 50lux / Disable |
Life time |
50,000 hours |
Guaranty |
5 years |
Applications:
Special for use in the solar energy garden lamp or industrial control application where requires isolation between motion signal and power supply.
