12V 40Ah Lithium Batteries for Solar Street Light , Including Solar Panel and Charge Controller

Large Image : 12V 40Ah Lithium Batteries for Solar Street Light , Including Solar Panel and Charge Controller Get Best Price

Product Details:

Place of Origin:	China
Brand Name:	HECO
Certification:	CE,ETL,RoHS ,MSDS,UN38.3, ISO/TS14001
Model Number:	HC-SL-12F40-I

Payment & Shipping Terms:

Minimum Order Quantity:	10 Packs
Price:	Negotiable
Packaging Details:	1 pack/carton
Delivery Time:	Sample: within 25 days;bulk order:25~60 days, based on the order quantity
Payment Terms:	T/T (30% advance payment, 70% balance payment to deliver the goods);Western Union, Paypal
Supply Ability:	2000 packs/ month

Contact Now

Detailed Product Description

Name:	Lithium Batteries For Solar Street Light	Battery Volt:	12V
Battery Capacity:	40Ah	Battery Weight:	5kg
Solar Panel:	12V 70W	Charge Controller:	12V 10A

12V 40Ah Lithium Batteries for Solar Street Light , Including with Solar Panel and Charge Controller

Quick Detail:

With the emergence of wind & solar power and other new energy sources, the development of intelligent grid technology as well, large -scale energy storage station is becoming to meet peak power allocation. HECO is developing he environmental-protection lithium-ion energy storage battery with the lightest, fast charge and discharge, cycle life more than than 2,000 times to meet the future demand of energy storage stations and new energy vehicle charging stations. HECO strives to become an advanced enterprise in the energy storage battery industry field.

HECO 12V & 24V standard lithium ion battery with excellent safety,high energy density, cell voltage detection, which could be connected with BMS to monitor the matter as well, which is most suitable for energy storage battery.

Description:

12V 40Ah Lithium Batteries for Solar Street Light , Including with Solar Panel and Charge Controller

Compared with the same capacity lead-acid battery, LiFePO4 battery is 1/3 smaller in size, 2/3 lighter in weight, 5 times longer in cycle life, more economic and eco-friendly.

LiFePO4 battery replacing Lead acid battery is an inevitable trend.

Compared with same capacity Li-NixCoyMnZ battery, LiFePO4 battery is 2.5 times longer in cycle life, also most the same in weight & size.

Basic knowledge:

Lithium ion battery, classified by the anode material, can be divided into li-MH,Li-Co2, Li-NixCoYMnz, and Li-FePO4, etc.

Classified by the battery shell, can be divided into plastic shell, stell/iron shell and aluminum shell.

All these lithium ion batteries have their own advantages. The technical data of their comparative performances is as follows:

Different Lithium Battery Material Comparision Table
NO.	Parameters	Li-Co₂	Li-NiCoMn	Li-MnO₂	LiFePO₄
1	Energy density (g/cm³)	2.8~3.0	2.0~2.3	2.2~2.4	1.0~1.4
2	Specific area (m²/g)	0.4~0.6	0.2~0.4	0.4~0.8	12~20
3	Capacity density (Ah/kg)	135~140	155~165	100~115	130~140
4	Voltage	3.7	3.6	3.6	3.2
5	Cycle life	＞300	＞800	＞500	＞2000
6	Transition metal	Poor	Poor	Rich	Very rich
7	Material cost	Very high	High	Cheap	Cheap
8	Environmental performance	Contain Co	Contain Co & Ni	Non-toxic	Non-toxic
9	Safety performance	Bad	Good	Better	Excellent
10	Application area	Small battery	Small battery Small power battery	Power battery	Power battery Large capacity power supply

Specifications:

Item	Inscription
Nominal Voltage	12V
Rated Capacity	40Ah
Pack Dimension	customized design
Internal Impedance	≤100mΩ
Max.Charge Voltage	14.6V
Charge Current	6A
Discharge Cut-off Voltage	9.2V
Discharge Current	2A
Max.Discharge Current	15A
Charging Mode	CC/CV
Pack weight	About 5 kg
Over Current Protection	Customized design
Cycle Life	≥2000 Cycles @ DOD=80% @ 50℃
Charge Temperature	0-65 ℃
Discharge Temperature	-20-55 ℃
Certificates	CE,ETL,RoHS,UN38.3, ISO/TS14001
The data on the table is only for reference

Intergrated System:

Including the Solar Panel, Charge Controller, Lithium Battery!

The LED Lights we recommend you prepare by yourself. And tell us the your requirement:

1. What's the working watts and working voltage of your LED lights?

2. how many hours you want the lights to work each day?

3. if there is no sunshine, how many days of the electricity needs to be reserved?

Below is the Real Shots:

12V 40Ah Lithium Batteries for Solar Street Light , Including Solar Panel and Charge Controller 0

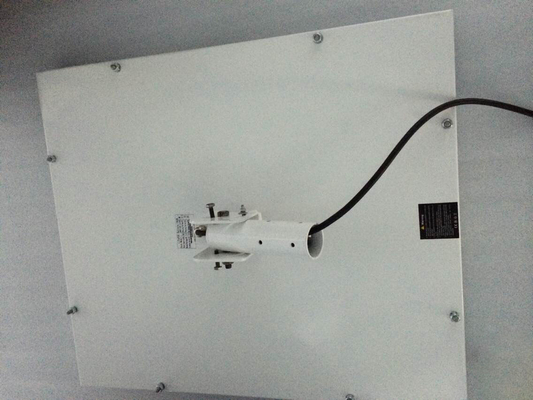

You can see that the backside is the battery housing. The battery housing is the same dimensions with the solar panel. So seen from outside, it just looks like one panel.

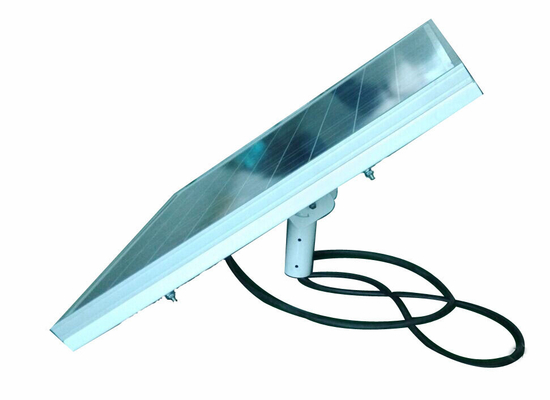

12V 40Ah Lithium Batteries for Solar Street Light , Including Solar Panel and Charge Controller 1

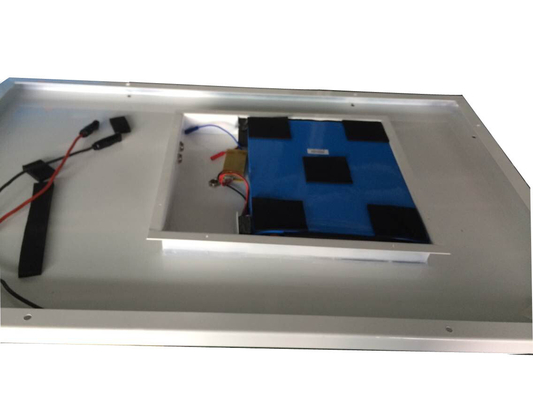

The battery is placed inside the battery housing, as well as the charge controller. The battery we supply is LiFePO4 lithium battery, which is of long cycle life to be 2000 cycles and enjoys excellent performance under high tempreture to be 60℃. The battery dimensions can de changed according to different capacity and volt.

Welcome to contact us if you have speficied requirements!

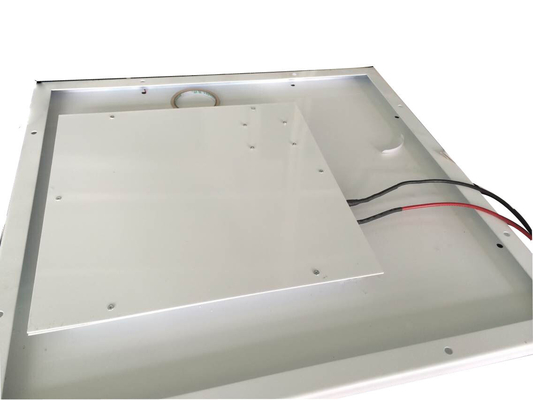

12V 40Ah Lithium Batteries for Solar Street Light , Including Solar Panel and Charge Controller 2

Product advantages:

1. Long cycle life (2000 cycles) is several times greater than Ni-MH, Ni-Cd or lead-acid.
2. No toxic, or polluting material(such as lead, cadmium, mercury) is contained in lithium battery, which is a kind of green battery.
3. High safety. LiFePO4 is an intrinsically safer cathode material than Lithium-ion since exothermic reactions can not occur in batteries based on this material LiFePO4 cells do not incinerate or explode under extreme conditions.
4. Good performance in high-current discharge cycles. We can design different capacity and size according to your demands.
For many applications, our battery systems result in significantly lower total cost of ownership over lead acid because lighter-weight, longer-life batteries means fewer replacements, reduced maintenance and service costs, less shipping and material handling costs, and lower total inventory carrying costs.

Company advantages:

1. Advanced polymer lithium-ion battery technology system ensure the correct technical direction and advanced leading technology
2. Excellent procedure quality tracking control system ensure HECO battery’s excellent performance and good consistency.
3. One-stop lithium battery system solutions. Heco’s research and development team include electronic engineer, mechanical engineer, structure engineer, whom could offer our clients one stop solutions including BMS, charger, battery pack structure, and overall applications.
4. Intimate and in time reacting service system. We always try to offer more than expected, do more than required.

Tag: 40ah street light lithium battery , 12V solar light lithium battery, solar light lithium battery
