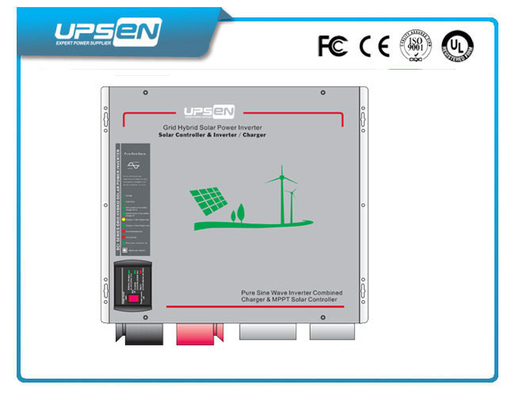

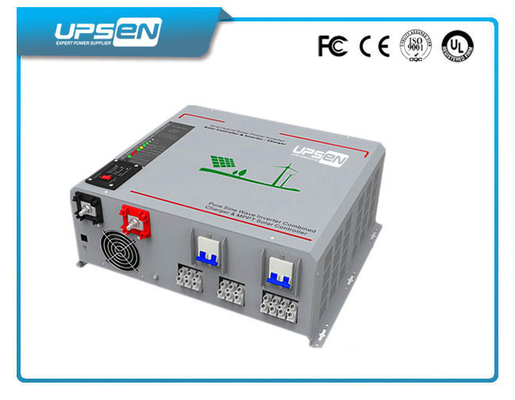

Solar Power Inverter Controller All in one 1Kw / 2Kw / 3Kw / 4Kw / 5Kw / 6Kw with 12Vdc 24vdc 48vdc

Large Image : Solar Power Inverter Controller All in one 1Kw / 2Kw / 3Kw / 4Kw / 5Kw / 6Kw with 12Vdc 24vdc 48vdc Get Best Price

Product Details:

Place of Origin:	China
Brand Name:	UPSEN
Certification:	CE, ISO, RoHS
Model Number:	Cosmos Star Series 1-6Kw

Payment & Shipping Terms:

Minimum Order Quantity:	5pcs
Price:	Negotiation
Packaging Details:	Wooden Box
Delivery Time:	7-15 Days
Payment Terms:	T/T, LC, WU, Money Gram etc
Supply Ability:	50,000pcs/Month

Contact Now

Detailed Product Description

Waveform:	Pure Sinewave	Output Power Factor:	1
Phase:	Single Phase	Protection:	Over Load/Current/Voltage, Short Circuit Etc
Display:	LCD/LED	H.S. Code:	8504403090
High Light:	all in one Inverter , pure sine wave power inverter

Solar Power Inverter Controller All in one 1Kw / 2Kw / 3Kw / 4Kw / 5Kw / 6Kw with 12Vdc 24vdc 48vdc

Model: Solar Inverter Controller All in one Cosmos Star Series 1000W-6000W (1ph in/1ph out)

Solar Inverter Overview

1: Remote control & RS232 communication port

2: Working modes switches automatically– AC Grid bypass mode, inverter mode, AC Charging mode,

solar charging mode

3: Inbuilt MPPT 20/30/40/50/60A, with DC Voltage 12/24/48VDC

4: LCD&LED Screen for option

Key Features:

1: Professional off grid solar system solution, which is a combination of big power inverter and solar controller
2: Working modes switches automatically– AC Grid bypass mode, inverter mode, AC Charging mode, solar charging mode
3: Pure sine wave output which matches wave form of AC grid no matter is on AC grid mode or inverter mode, workable on inductive load
4: Remote control & RS232 communication port
5: Power saver mode
6: Four stages smart charging, charging current adjusted automatically
7: DIP switch optional: Selectable charging voltage for various battery type
8: Manual control input&output breakers
9: AC Grid priority & battery priority working mode as selectable
10: AC grid mode: AC Bypass supplies load when AC is normal, battery invert AC supplies load when AC is off
11: Battery priority: battery invert supplies load when battery get full-charged; AC bypass supplies load when battery low and at the meantime battery get charged from solar controller. It transfers back to battery invert mode when battery get full charged. It makes full use of solar energy and saves electricity.
12: LCD&LED Screen for option
13: Inbuilt MPPT 20/30/40/50/60A, with DC Voltage 12/24/48VDC

Technical Specification

Mode NO.	CS600	CS1000	CS2000	CS3000	CS4000	CS5000	CS6000
Rated Power	600W	1000W	2000W	3000W	4000W	5000W	6000W
AC INPUT
Phase&Waveform	Single pahse&Pure Sine Wave
Voltage	110VAC/120VAC/220VAC/230VAC/240VAC
Fequency	50HZ/60HZ(Auto adjust)
Voltage range	95-127VAC/194-253VAC
Frequency range	48-54HZ/58-64HZ
AC Output
Waveform	Pure Sine wave and single phase
Voltage	110VAC/120VAC/220VAC/230VAC/240VAC
Frequency	50HZ/60HZ
Peak Power	1800W	3000W	6000W	9000W	12000W	15000W	18000W
Battery
Battery DC	12/24VDC	12/24VDC	12/24/48VDC		24/48VDC
MAX charging cunrrent	20A-75A
Battery type	GEL,AGM,Sealed lead acid
MPPT Controller
PV Input	15-30VDC For 12VDC/30-55VDC For 24VDC
MAX charging cunrrent	20/30/40/50/60AMP
MAX Ouput current	15A
for DC laod
Transfer efficiency
MPPT efficiency	more than 95%
Line Mode	more than 95%
Battery Mode	more than 85%
Power Saver	Available when load is less than 50A
Transfer time	10ms
Indicator
7-LED Indicators	Left to right:1.Line Mode(Green),2.Inverter Mode(Green),Charging Mode(Yellow),4.Full Charged(Green),
	5.Over Temp(Red),6.Over Load(Red),7.Saving Mode(Green)
2-LED Indicators on MPPT	Power/CHG Mode
Dimension	*486400181mm*				*486432181mm*
Weight	22KG	26KG	28KG	33KG	45KG	52KG	56KG

Competitive Advantages:

1: Three Years' warranty for pure sinewave inverter, and 1% free UPS or 2% free PCB Boards
3: Good after-sales service, we will be full responsible for any faults caused by our side
4: Professional experience in power field more than 10 years
5: Professional technical support before and after sales

6: Timely response, fast delivery time and flexible operations to satisfy any customers' special requests.

7: Free OEM & ODM Service

8: Competitive price, quality and mature products
