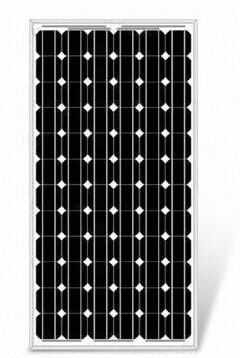

Eco-friendly High Efficient Mono Solar Panel , Commercial Solar Power Panels

large.img.alt
small.img.alt

Large Image :  Eco-friendly High Efficient Mono Solar Panel , Commercial Solar Power Panels Get Best Price

Product Details:
Place of Origin: Zhejiang China
Brand Name: ADVANCE
Certification: ISO9001
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: negotiable
Packaging Details: Wooden cases or according to your requirements
Delivery Time: 15-30 working days,according to the order.
Payment Terms: L/C, T/T
Supply Ability: 1000 PCS/ Year
Detailed Product Description
High Light:

high efficiency solar panels

,

12 volt solar panel

Mono Solar Panel





Basic Info.

 Material: Monocrystalline Silicon      Size: 670*1475*35

Export Markets:Global                         Front Glass: Low  Iron,High transmission,tempered


Additional Info

Packing:  Carton BOX+Plywood Pallet          Standard:  CE RoHS ,ISO4001

Orgin:hangzhou China                                     HS Code: 8541402000

Production Capacity :2.5MW per Month


Production Description

Features:
High-strength low-iron touguened
Anodized aluminum frame
With a charge controller with LED charge status display and electronic circuit protection
Longlife time :at least 25years,small attenuation(Resistance to humidity and salt fog corrosion)



Efficiency

Low voltage-temperature coefficient allows higher power output at high-temperature condition
High efficient, high reliable solar cells ensure our product output stability

Materials of solar panel
1.Solar cell----Germany manufactured Bosch solar cells ,efficiency is about 0.18
2.Commercial and industrial building roof-top systems
3.Resident systems

Quality and Safty
1. Rigorous quality control meeting the highest international standards
2. 25-year power output transferable warranty
3. Have TUV,IEC,CE,ISO9001/14004 and ROHS certificates

monocrystalline
Peak power Pma(W) Max.power voltage Vm(V) Max.power current Im(A) Open-circuit Voltage Voc(V) Short-circuit current Isc(A) Dimensions (mm) No. of Cells Shaped Solar Cell(mm) Weight(KG)
10 17.5 0.61 21.3 0.68 330*300*17 36 31.25*62.5 1.2
15 17.1 0.88 21.5 0.97 420*340*17 36 78*39 1.9
20 17.5 1.14 22 1.19 630*330*17 36 62.5*62.5 2.2
25 18.2 1.37 22.4 1.51 550*360*25 36 78*52 2.4
30 17.8 1.69 22.2 1.86 445*550*30 36 125*41.67 3
40 18.4 2.18 22.6 2.39 425*665*30 36 156*39 3.5
45 17.8 2.53 22.2 2.78 632*550*30 36 125*62.5 4
45* 18.2 2.48 22.4 2.72 500*665*30 36 156*48 4
50 18.2 2.75 22.4 3.03 537*665*30 36 156*52 4.5
55 18.2 3.02 22.4 3.33 600*665*30 36 156*58.5 5
60 17.8 3.37 22.2 3.71 840*550*30 72 125*41.67 6
80 18.4 4.35 22.6 4.79 770*665*30 36 156*78 6.2
90 17.8 5.06 22.2 5.57 1195*550*30 36 125*125 8
105 18.4 5.71 22.6 5.71 1030*665*30 72 156*52 8
115 18.4 6.25 22.6 6.88 1150*674*30 36 156*117 9
160 18.4 8.7 22.6 9.57 1474*674*35 36 156*156 12
180 35.8 5.03 44.8 5.49 1580*808*35 72 125*125 15
230 27.6 8.34 33.9 9.17 1482*992*50 54 156*156 17.5
250 30.7 8.15 37.7 8.96 1650*992*50 60 156*156 20
300 35.6 8.43 44.8 9.27 1956*992*20 72 156*156 23
