Power: | 180W | Voltage: | AC 100~240V DC 12V/24V |
---|---|---|---|
Light Source: | LED | Application: | Exterior, Industry, Warehouse |
Item Type: | Outdoor Lights | Production Name: | Led Cobra Head Street Light |
High Light: | high power led lights,led street lighting |

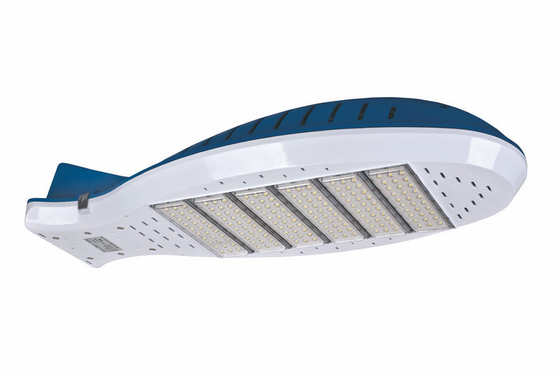

Smd 180w Led Cobra Head Street Light Of High Lumens 110 lm/w
, Ra 90 / Ac220v
Quick Detail:
1, LED STREET LIGHT ;
2, outdoor lighting
3, LED Power: 180W
4, Lamp’s Power 200W
5, Operating Voltage:AC 100~240V 50/60Hz| DC 12V/24V
6, Ra ≥ 75 LED STREET LIGHT
7, LED Luminous Flux: 21600 lm in Initial, 19800 lm in Maintain
8, Lifetime: 50000 hours
Specifications:
Model No.8 | ZL-St08-180 | |
Electrical Specifications |
LED Power | 180W |
Lamp’s Power | 200W | |
Operating Voltage | 100-240Vac,50/60Hz|12V/24Vdc | |
Optimal Operating Temp | -40ºC ~ +50ºC | |
Operating Humidity | 10% ~ 90% | |
Power Fact(PF) | > 0.95 | |
Driver Efficiency | > 90% | |
Photometric Specifications |
LED Luminous Flux | 21600 lm - Initial |
19800 lm - Maintain | ||
LED Luminous Efficiency | 110 lm/w | |
CRI | Ra ≥ 75 | |
CCT | ||
Mechanical Specifications |
IP Rating | IP65 |
Warranty | 3 year | |
Heat Radiator | Anodized Aluminum | |
Lens | Plastic (PC) | |
Fixture Dimension | 992 x442 x211 mm (39.1 x17.4 x8.3 inches) | |
Fixture Weight | 18 kg (39.7 lbs) | |
Packing Information |
Packing Type | 1unit /ctn. |
Packing Dimension | 1040 x490 x260 mm (40.9 x19.3 x10.2 inches) | |
Packing Weight | 21 kg (46.3 lbs) |
Description:
Illumination Information
Features
· HIGH-GRADE LED LUMINOUS SORUCE
· STABLE,EFFICIENT LED DRIVER
· OPTIMAL HEAT RADIATION PERFORMANCE
· UNIQUE OPTICAL SYSTEM
· EXCLUSIVE DESIGN WITH PATENTS
· SOLID AND COMPACT PACKING
· UL LISTED PHOTO SENSOR OPTIONAL
· 3 YEAR WARRANTY
Applications:
The product (LED lighting equipment, electrical , electronic equipment) should not be placed in municipal waste. Check local regulations for disposal of electronic products.
Features and specifications are subject to change without notice.
The product color may be different with actual due to discrepancy of camera or screen settings.
