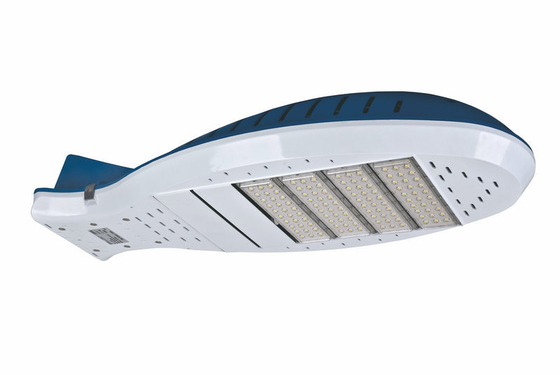

Ip65 120w Led Cobra Head Street Light For Subway / 14400 lumen Initial Dc12v Led

Ip65 120w Led Cobra Head Street Light For Subway / 14400 lumen Initial Dc12v Led

Quick Detail:

1, LED STREET LIGHT ；

2, Outdoor lighting

3, LED Power: 120W

4, Lamp’s Power 135W

5, Operating Voltage:AC 100~240V 50/60Hz| DC 12V/24V

6, Ra ≥ 75  LED STREET LIGHT

Specifications:

Model No.6	ZL-St06-120
Electrical Specifications	LED Power	120W
	Lamp’s Power	135W
	Operating Voltage	100-240Vac,50/60Hz|12V/24Vdc
	Optimal Operating Temp	-40ºC ~ +50ºC
	Operating Humidity	10% ~ 90%
	Power Fact(PF)	> 0.95
	Driver Efficiency	> 90%
Photometric Specifications	LED Luminous Flux	14400 lm - Initial
		13200 lm - Maintain
	LED Luminous Efficiency	110 lm/w
	CRI	Ra ≥ 75
	CCT
Mechanical Specifications	IP Rating	IP65
	Warranty	3 year
	Heat Radiator	Anodized Aluminum
	Lens	Plastic (PC)
	Fixture Dimension	992 x442 x211 mm (39.1 x17.4 x8.3 inches)
	Fixture Weight	16 kg (35.3 lbs)
Packing Information	Packing Type	1unit /ctn.
	Packing Dimension	1040 x490 x260 mm (40.9 x19.3 x10.2 inches)
	Packing Weight	19 kg (41.9 lbs)

Description:

Illumination Information

Features

· HIGH-GRADE LED LUMINOUS SORUCE

· STABLE,EFFICIENT LED DRIVER

· OPTIMAL HEAT RADIATION PERFORMANCE

· UNIQUE OPTICAL SYSTEM

· EXCLUSIVE DESIGN WITH PATENTS

· SOLID AND COMPACT PACKING

· UL LISTED PHOTO SENSOR OPTIONAL

· 3 YEAR WARRANTY

Applications:

The product (LED lighting equipment, electrical , electronic equipment) should not be placed in municipal waste. Check local regulations for disposal of electronic products.

Features and specifications are subject to change without notice.

The product color may be different with actual due to discrepancy of camera or screen settings.
