Keyland solar panel production lines Turnkey solution for PV 1MW 5MW 10MW 20WM 50-100MW

large.img.alt
small.img.alt small.img.alt small.img.alt small.img.alt small.img.alt

Large Image :  Keyland solar panel production lines Turnkey solution for PV 1MW 5MW 10MW 20WM 50-100MW Get Best Price

Product Details:
Place of Origin: CHINA
Brand Name: Keyland /Gosun
Certification: CE ISO9001 TUV
Model Number: solar panel marking machines
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: FOB shanghai/shenzhen USD
Packaging Details: International Standard Packaging Plywood Carton
Delivery Time: 15-30 working days
Payment Terms: T/T L/C
Detailed Product Description
High Light:

equipment for solar panel prodution line

,

PV solar panel production line

,

machines for solar panel production line

5MW 10MW 20MW 50MW Photovoltaic Solar Panel Manufacturing Machines For Solar Panel Production Line Project Solution

Product Description

Application

Mainly used in Solar Mono-Si, Poly-Si crystalline Panel module assembly line.

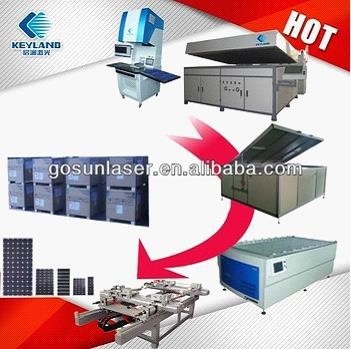

We offer Turnkey solution for Solar Panel Production Line Equipment:

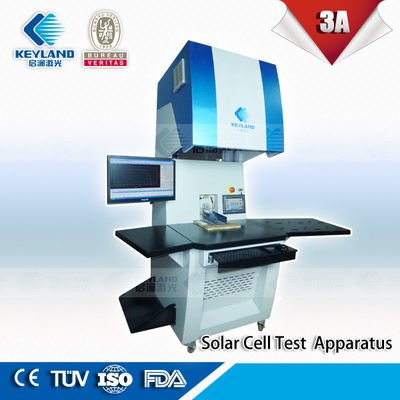

Main Technical Parameters of Solar Cell Tester :

Keyland solar panel production lines Turnkey solution for PV 1MW 5MW 10MW 20WM 50-100MW 0

Light intensity:100mW/cm2
Light intensity non-uniformity:≤±2%
Test results consistency: ≤±0.5%
Test error of electrical properties:≤1%
Single flash time: 10ms-30ms continuous adjustable
Effective test range: 200×200mm/0.1W-5W
Measuring voltage: 0V-0.8V(resolution 1mV)
Measuring current: 0-20A(resolution 1mA)

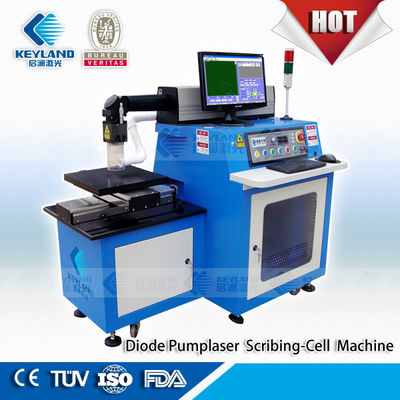

Main Technical Parameters of Solar Cell laser cutting machine:

Keyland solar panel production lines Turnkey solution for PV 1MW 5MW 10MW 20WM 50-100MW 1

Laser wave length 1064nm
Laser power 20W (Pulse )
Scribing width 30µm
Max Scribing speed 260mm/s
Scrining accuracy +10µm
Working area 350X350mm
Working power 220V/50Hz/1kVA
Working table Negative pressure adsobing and dust elimination
Cooling method Forced air cooling
Maintenance free time 100,000 hours

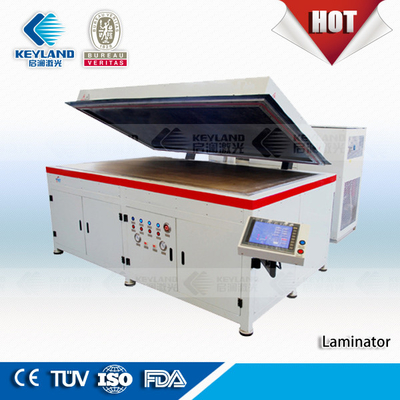

Main Technical Parameters of Solar Panel Laminator:

Keyland solar panel production lines Turnkey solution for PV 1MW 5MW 10MW 20WM 50-100MW 2

Power Source: AC 380V, Three-phrase Five-wire system

Laminating area:2200*1100mm, 2200*2200mm,2200*3600mm

Control Style:Automatic/ Manual

Laminating Cavity Height:26mm

Temperature evenness:± 1.5 °C

The temperature control precision: ± 1 °C

Temperature range: 30 to 180 °C

Exhaust velocity:70 L/S

Working Vacuum degree: 200-20 Pa

Working power: 18KW

Air pressure needed: 0.5-0.8 Mpa

Pumping time: 5 to 6 min

Operating environment:Ambient temperaturn 0 to 50 °C ,

Ambient humidity: < 90 %,

Elevation: Below 2000m

Main Technical Parameters of EL Detector:

Keyland solar panel production lines Turnkey solution for PV 1MW 5MW 10MW 20WM 50-100MW 3

Effective testing area: 1200*2100mm

Resolution:6.1 Megapixels or 11.4 Megapixels

Sensitivity:can detect crack width less than 0.2 µm

Testing methods:uncontact free style

Power parameter:single-phrase 220V 10A, Max load currency 10A

Single flash time:testing platform ( including infrared camera), computer, professional software

Test fast and convenience:long time 1s- 60s (adjustable)

Working ambient temperature:10-30°C

Time of exposure:0.1 s- 25s adjustable;

Power :220V 10A or customized;

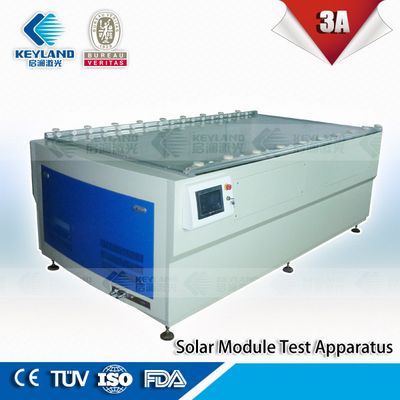

Solar Panel Tester Main parameters:

Keyland solar panel production lines Turnkey solution for PV 1MW 5MW 10MW 20WM 50-100MW 4

Light intensity: 100mW/cm2
Light intensity non-uniformity:≤±2%
Light intensity instability degree of irradiation:≤±2%
Test results consistency: ≤±0.5%
Test error of electrical properties:≤1%
Effective test range : 2000×1200mm/5W-300W
Measuring voltage: 10V-100V(resolution 1mV)
Measuring current: 0-20A(resolution 1mA)
Test parameters: Isc,Voc,Pmax,Vm,Im,FF,EFF,Temp,Rs,Rsh PanelTester

Solar Panel Framing Machine Main parameters:

Keyland solar panel production lines Turnkey solution for PV 1MW 5MW 10MW 20WM 50-100MW 5

Framing size: Min:350×500*35MM Max:1150×2100*500MM

without bump horny

Difference of diagonal line : 1.5mm

Air cylinder, linear rail, steel structure

Our Services

Main Production Line Equipment:1.Semi/Full Automatic Panel Laminator
2.Solar Cell Tester
3.EL Module Detector Machine
4.Solar Panel Testing MachineAuxiliary Production Line Equipment:5.Framing Machine
6.EVA/TPT cutting station
7.EVA/TPT transfer carrier
8.Single Solar cell soldering Welding station
9 .String Solar cell soldering Welding station (bus bar)
10.Soldering ribbon cutting machine
11.Cell string shelf
12.Ready material carrier
13.Module transfer carrier
14.Laying up station
15.Inspection station
16.Cell sorting table
17.Cleaning working table
18.Working table

Solar Panel Customer's Site:
