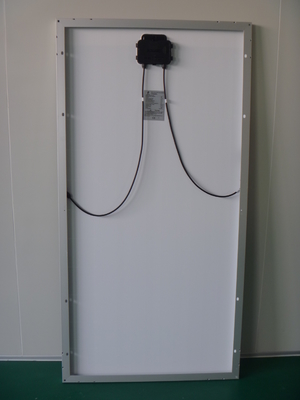

High Efficiency A grade 1580 x 808 Mono 205 Watt Solar Panel For Home

I'm Online Chat Now
Certification
China China Poly Solar Panel Online Market certification
China China Poly Solar Panel Online Market certification
We trust the quality of your products. It always the best. Keep this going, and we will establish a long-term trade relationship with you.

—— Mr Zero

Cooperation is very satisfactory and the Company of the past few years, we are very willing to continue long-term cooperation.

—— Dean

The quality and service are good, delivery time is punctual every time.

—— Russian Seles

High Efficiency A grade 1580 x 808 Mono 205 Watt Solar Panel For Home

large.img.alt
small.img.alt

Large Image :  High Efficiency A grade 1580 x 808 Mono 205 Watt Solar Panel For Home Get Best Price

Product Details:
Place of Origin: China
Brand Name: CESC
Certification: CE/CSA/TUV
Model Number: M7X-205
Payment & Shipping Terms:
Minimum Order Quantity: 100pcs
Price: negotiation
Packaging Details: Packaging in carton or wooden case
Delivery Time: 10 working days after received your payment
Payment Terms: T/T or LC at sight
Supply Ability: 3,0000pcs per month
Detailed Product Description
Product Name: MONO SOLAR PANEL Appliant: PV Genarate Electricity
Size Of Panel: 1580*808 Solar Cells Style: 125*125
Solar Cells Array: 6*12 Pcs Max Output Power: 205W
Standard: CE/CSA/TUV Grade: A Grade
Weight: 15.5Kg
High Light:

mono crystalline solar panel

,

monocrystalline silicon solar panels



High Efficiency 205 Watt Mono Solar Panel 1580 x 808 A grade For Home



Detailed Product Description



80W-320W Monocrystalline solar panel with certificate



Product Description



Solar Module Series --- Mono solar module





Advantage:



100% test for solar cell by flash testing.
100% EL testing before lamination, make sure every cell no dot,no scracth,no cracked
100% EL testing after lamnation, make sure no cracked during the lamination.
100% falsh tesing before package & shippment make sure power tolerance 0~+3%.





Features



High efficiency solar cells

High transparent low – rion tempered glass

Water resistant junction box

Anodized aluminiu frame

Design to meet unique demand of customer



Benefits



Manufactured in an ISO 9001:2000 certified plant

High efficiency ,  high safety , high reliability

Output power tolerance of +/-3%.

25 Years limited warranty on Power output.

3 Years limited warranty on materials and workmanship



Specification

Type

M7X-205

Mono or Poly

Mono

Maximum power (Wp)

205

Maximum Power voltage (V)

37.3

Maximum Power current (A)

5.51

Open circuit voltage (V)

45.6

Short circuit current (A)

5.79

Number of cells (Pcs)

72

Size of module (mm)

1580*808*35mm

Temperature coefficients of Pm (%)

-0.47%/℃

Temperature coefficients of Isc (%)

-0.35%/℃

Temperature coefficients of Voc (%)

0.05%/℃

Temperature Range

-40℃-85℃

Tolerance Wattage (e.g. +/-5%)

+3%

Weight per piece (kg)

15.5kg

Cell Efficiency (%)

>18%

Frame (Material, Corners, etc.)

Aluminum

Standard Test Conditions

AM1.5 1000W/m2 25℃

Warranty

10 years product warranty and 25 years 80% of power

High Efficiency A grade 1580 x 808 Mono 205 Watt Solar Panel For Home 0
