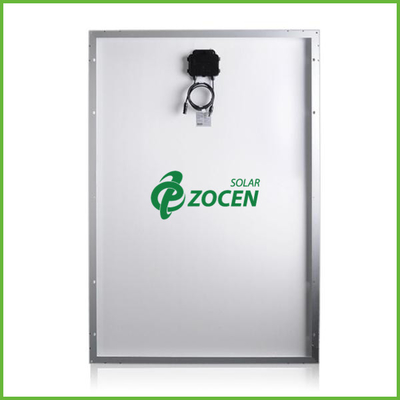

White PET / EVA 285W PV Polycrystalline Solar Panels For Homes / Marine

White PET / EVA 285W PV Polycrystalline Solar Panels For Homes / Marine

1> Products Descriptions

1. Product name: 285W Polycrystalline solar panels
2. Solar cell: 156*156mm(6 inch) Poly-crystalline, Anti-reflective coating used to reduce the reflectivity and enhance transmittance.
3. Tempered Glass: 3.2mm Low Iron and Anti-reflective coating glass increase the power output and mechanical strength of solar module. Mechanical load ≥2400Pa , transmittance ≥91.6%
4. EVA: Anti-aging,Transmittance ≥91% , Adhesive Capacity >85%
5. Back Sheet: high frame resistant & Double-sided fluorine TPT, to prevent destroying and water, it’s reflectivity ≥87%, peeling strength ≥ 40N/cm.
6. Aluminum Frame: Anodized aluminum alloy to effectively improve the corrosion resistance and strength
7. Junction Box: 6pcs 12A Diode + 90cm 4mm2 Solar Cable
8. Life time: 25 years
9. Power specification at 1kW/m 2, AM1, 5
10. Output cable: multi contact connectors

2> Features:

• High Performance Solar Panel
• Monocrystalline Cells
• Low Reflection of Sunlight
• High Light Absorption
• Functions perfectly under low light or panel being partly shaded
• Top Range Alloys Anodized Frame with Corner Protectors ( guaranteed no rust )
• CHUBB insurance company to guarantee the quality

3> Quality and Safety

• Warranty: 10years workmanship; Guarantee the power 90% in the first 12 years; Guarantee the power 80% in 25years.
• Certification: CE, TUV, IEC61215, IEC61730, MCS, CQC, CEC, CHUBB, BV, ISO
• Safety Grade: Class II
• Insurance: CHUBB insurance to guarantee the customers' profit in the long run
• Manufacturing facility certifed to ISO9001 Quality Management System standards.
• Packaging optimized to protect product during transportation and minimize on-site waste.
• Robust, corrosion resistant aluminum frame independently tested to withstand wind and snow loads of up to 2400Pa and 5400Pa,respectively,ensuring mechanical stability.

4> Specifications

• 285W PV Polycrystalline Solar Panel I-V Curves

• 285W PV Polycrystalline Solar Panel Electrical Characteristics

• 285W PV Polycrystalline Solar Panel Mechanical Characteristics

• 285W PV Polycrystalline Solar Panel Packing configuration
