Vertical Axis Wind Turbine Vawt Wind Solar Hybrid Street Light System


Large Image :  Vertical Axis Wind Turbine Vawt Wind Solar Hybrid Street Light System Get Best Price

Product Details:
Place of Origin: China
Brand Name: TYPMAR
Certification: CE,TUV, IEC
Model Number: CXF-300W 12V/24V
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: negotiation
Packaging Details: Plywood box
Delivery Time: 5-15 days
Payment Terms: Ex works
Supply Ability: 5000PCS/week
Detailed Product Description
High Light:

Solar Wind Powered Street Lights


Solar Wind Street Light

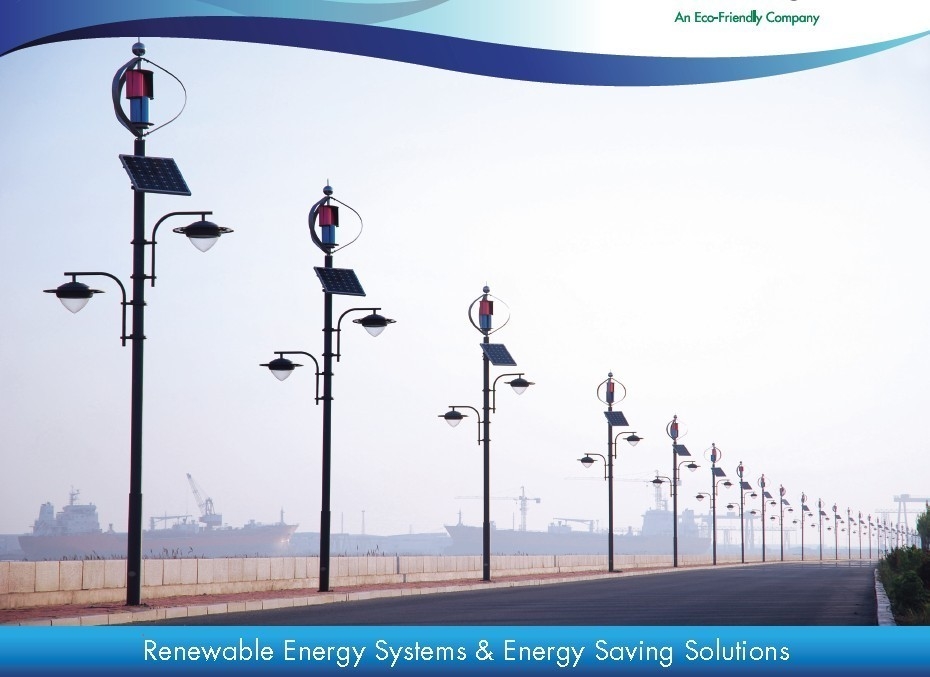

Vertical Axis Wind Turbine Vawt Wind Solar Hybrid Street Light System



The  Wind Solar Hybrid Street LED Light is composed of solar panel, wind turbine, hybrid control system, battery bank, inverter, etc. This system will take advantage of both wind and solar power (the two clean energy source) at the same time, it will be a popular option in the near future.


lar resource is mutually complementary(the hybrid will be specially designed based on the individual consumption and local resource condition), it can make the using of wind and solar power more balanced and stable. Meanwhile, it will not only improve the reliability of electricity supply but also reduce the power production cost. Moreover, the unique shape of this hybrid system will also make its surrounding area more beautiful and attractive.

We manufacture the systems specifically to the region of installations weather patterns and topography, as well as the client’s requirements thus ensuring the correct solution is given every time!



The whole power system configuration:



Equipment Name

Model No /Specification




Wind generator





Wind & solar hybrid controller

300W-24V (Max 540W Solar)





7.2 M




Solar panel

120W  monocrystal  silicion









Main cables

3 X 4mm2  +  2 X 4mm2









Quick Detail:


  1. Name :Wind Solar Hybrid Street Lamp
  2. Application :Street lamp with Single arm or double arm .
  3. Color: Red & blue, or Sliver





Wind solar hybrid LED streetlight system can guarantee the lamp will work for 10 hours each day and ceaselessly work for 5 days in rainy weather. The totally configure will be based on the local weather situation, like the annual average wind speed and solar energy. And all the configuration will meet clients’ demand.


  1. Also if the local situation is not good enough, then we can design that the lamp will work with full power in the first 5 hours, and work with half-power in the other 5 hours to achieve saving energy.
  2. The height of the post and the LED streetlamp will be chosen according to the local standards of streetlight.
  3. The battery can be placed inside the post to be easy to replace battery every four years or buried under ground to guarantee the span life of battery in ultimate weather.
  4. The maglev wind turbine, 1m/s start-up wind speed, 2.5m/s cut-in wind speed, with high power efficiency, no noise, less vibration and balance structure, darrieus and savonieus design, classic appearance, with best capability to survive in over-high wind speed, like hurricane and typhoon, with span life 20 years; Lead Acid Gel battery, span life for 4 years; Mono Solar panel, power efficiency 17%; LED streetlamp, 60-120W, Good performance, IP65, with heat-dissipation patents; post with cold galvanizing and F-C white paint.
  5. The whole system is not just a functional natural energy illumination, but also a beautiful scene for streetlight.


The TYPMAR wind-solar hybrid lighting system is a self-sufficient, independent lighting system that eliminates the need to construct buried electrical supply trunks that are typical in conventional street lighting systems. The TYPMAR hybrid street light is capable of providing 10 to 14 hours of illumination per night. The Hybrid street light controller uses Pulse Width Modulation technology to control battery charging with over-load protection. It also controls the light operation by time setting or by light level sensing via the PV cell module.



Benefits Maglev VAWT in comparison to a propeller wind generators:


  • independent of the direction of the wind
  • higher efficiency than the propeller blades
  • works even in turbulence
  • visually pleasing appearance and rotation of the blades
  • quiet or almost minimal acoustic noise
  • movement of the blades even in low wind 0.1m/sec (0.32FPS)
  • turbine construction is resistant to gale 160km/h (100MPH)
  • designed for mounting on mast, straight or saddle area
  • design: aluminum, stainless steel, fiberglass
  • design life: at least 20 years
  • direction of rotation by earth hemisphere using Coriolis force
  • half design against vane turbines, with the same power
