Product Details:
Payment & Shipping Terms:
|
High Light: | custom solar panels,solar panel kits |
---|

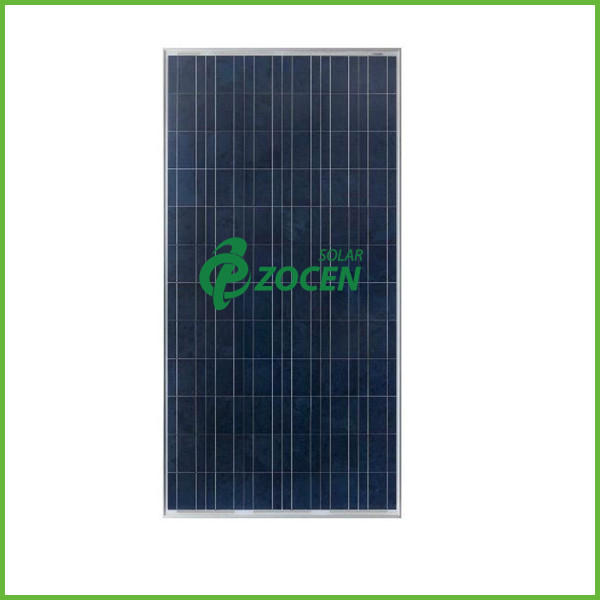

Off-grid / Grid-tied System 225W Polycrystalline Solar Module , TUV Certified
1> Quick deails
2> Warranty & Certification:
3> Features
4> Specifications
Solar Cells
|
54(6×9) polycrystalline cells156mm |
Front Cover
|
3.2mmthick low iron tempered glass |
Back Cover
|
TPT(Tediar-PET-Tediar) |
Encapsulant
|
EVA(Ethylene vinyl acetate) |
Frame
|
Anodized aluminum alloy, double wall |
Diodes
|
6 Bypass diodes serviceable |
Junction Box
|
IP65 rated, TUV certification |
Connector
|
MC4 or compatible connector |
Cables
|
Length:1000mm,/Section:4.0mm2 |
Dimension
|
1482*992*40(mm) |
Weight
|
18KGS |
Max Load
|
5400Pa |
5> Quality Control
