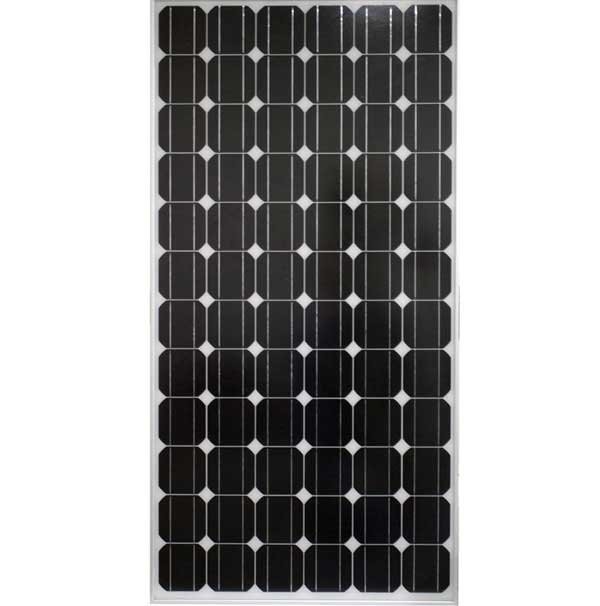

mono solar panel 300W


Large Image :  mono solar panel 300W Get Best Price

Product Details:
Place of Origin: Shandong
Brand Name: Hilight Solar
Payment & Shipping Terms:
Minimum Order Quantity: 10 Pieces
Packaging Details: PALLET
Delivery Time: 10~15 days, after payment
Payment Terms: TT, L/C at sight
Supply Ability: 10 MW/ Month
Detailed Product Description
High Light:

solar panel


solar module


panel solar

Monocrystalline Silicon Solar Panel300W

260W~300W MONO 1.jpg

Who we are?

Shandong Hilight -Solar Co.,Ltd is located in Zouping ,Shandong Province, China, which is near Jian International Airport.

We are manufacturer specialized in R&D, manufacturing, sales & service of 5Wp-310Wp mono-crystalline and poly-crystalline solar modules. Hilight solar products are widely used for solar power system, solar street light, solar garden light, solar lawn light ,solar pump and other solar correlative products.

Hilight solar PV modules passed TUV, IEC 61215 & IEC 61730, CEC, CE, ISO etc. certificates. HilightSolar products are marketable in Europe, South America, Australia, Africa and Southeast Asia countries. Wehave flexible and timely after-sales services. We offer high quality products and sustainable service to our customers, establishing long-term cooperative relationship with them.

For more information, please enter Hilight Solar Power World.

Our strengths:

1) First-grade cells

2) High-efficiency and low-price products

3) 25 years output warranty

4) 10 years manufacturing warranty

5) Stable production line


Mechanical Parameters

Solar Cell72(6x12) mono solar cells 156 x 156 mm
Front Cover3.2 mm thick, tempered glass
Back CoverTPT (Tedlar-PET-Tedlar)
EncapsulantEVA (ethylene vinyl acetate)
FrameDouble-layer anodized aluminium alloy
Junction BoxIP65 rated
Cables/Connectors4.0 square mm 900mm / MC4 or compatible connectors
Dimensions1956×992×50 mm

Working Conditions

Maximum System VoltageDC1000V (IEC)
Maximum Series Fuse15 A
Operating Temperature-40°C~+85°C
Storage Temperature-40°C~+85°C
Max. Wind Load / Max. Snow Load2400Pa / 5400Pa
Application ClassClass A
Module Area (square meter)1.94
Packing configuration264 Pcs./20 ft,container 528 Pcs./40 ft, container

Design Characteristics

A. Professional Manufacturers Of Mono & Poly Silicon PV Module

B. High Conversion Efficiency Solar Module

C. High transmission rate and low iron tempered glass

D. Anti-aging EVA, high frame resistant TPT to laminate and anodized aluminum alloy frame

E. Long life, Easy installation, high wind and hail impact resistance etc advantage.

F. Be resistant to atmospheric exposure and effects of delamination

G. Strict quality control and power classification of modules

H. Ready to use with junction box, cabling and connectors

I. TUV, IEC, CE, CEC, ISO Approved

J.25 years Warranty , 90% of original efficiency in 10years, and 80% in 25 years.

Solid Reliable Construction

A. Strong frames made from anti-corrosion (anodized) treaded aluminum

B. Toughened Glass surface and reinforced backing board designed to prevent water intrusion

C. Sealed Junction boxes filled with resin to keep moisture out, and highest quality EVA and

sealants to further protect against moisture

D. Module frames contain mounting points for ease of installation with a variety of track

Electrical parameters

Mono Solar Panel ModelPower (Wp)Solar Cell ArraySize: MM
( L x W x H )
Vmp (V)Imp (A)Voc(V)Isc(A)


260 W72PCS(6X12)1956x992x50367.36448


265 W72PCS(6X12)1956x992x5036.17.3444.28.1


270 W72PCS(6X12)1956x992x5036.27.4644.48.2


275 W72PCS(6X12)1956x992x5036.37.5844.58.3


280 W72PCS(6X12)1956x992x5036.47.6944.88.32


285 W72PCS(6X12)1956x992x5036.57.81458.45


290 W72PCS(6X12)1956x992x5036.67.92458.6


295 W72PCS(6X12)1956x992x5036.78.04458.63


300 W72PCS(6X12)1956x992x5036.78.17458.63

Manufacturing Process:

Manufacturing process.jpg

Certificates Approved


Monocrystalline solar panels


Polycrystalline solar panels





Trade show




Loading to the container


Solar power plant


Roof-top solar power system




Sincerely hope to cooperate with you, my friend.
