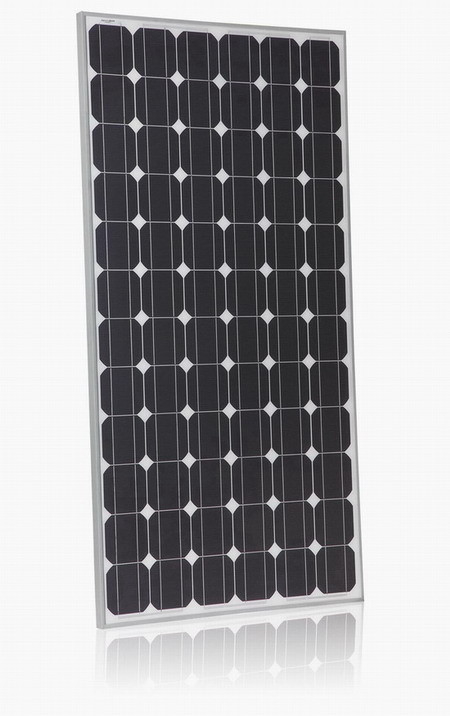

mono solar panel


Large Image :  mono solar panel Get Best Price

Product Details:
Place of Origin: china
Brand Name: top solar
Model Number: TS-S180M
Payment & Shipping Terms:
Minimum Order Quantity: 50
Packaging Details: standard carton box
Delivery Time: 15days
Payment Terms: t/t or against B/L copy
Detailed Product Description
High Light:

mono solar panel


mono solar module


180W mono solar panel specification


Module type    Pm(W)    Number of cell       Max System Voltage(V)  Vm(V)   Im(A)   Voc(V)  Isc(A)

 TS-S180M    180W          72                      1000           36.5        4.87      44.2      5.28



Maximum system voltage (V)      1000

Temperature coefficients of Isc (%)    +0.1%/℃

Temperature coefficients of Voc (%)    -0.38%/℃

Temperature coefficients of Pm (%)     -0.47%/℃

Temperature coefficients of Im (%)     +0.1%/℃

Temperature coefficients of Vm (%)    -0.38%/℃

Temperature Range       -40℃ ---85℃

Tolerance Wattage (e.g. +/-5%)    ± 3%

Surface Maximum Load Capacity  60m/s (200kg/sq.m)

Junction Box Type        PPO, black

Connectors and Cables Type        4mm2

Length of Cables (mm)        900

Cell Efficiency (%)       17%

Output tolerance (%)    ± 3%

Frame (Material, Corners, etc.)    Anodized Aluminum Alloy

Standard Test Conditions       AM1.5 1000W/㎡25℃

Guarantee of power       5 years for the whole product, 90% power for 10years, 80% power for 25 years.

FF (%)   ≥73.3%


Physical Characters

Output  Module Net Weight   Module Size (MM)        Packing     20' Container        40' Container

180W         15(kg)              1580*808*35         2pcs/carton      320 pcs          750 pcs
