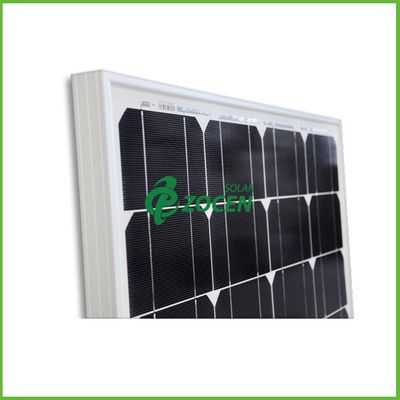

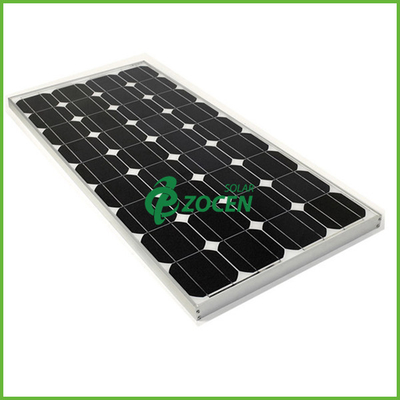

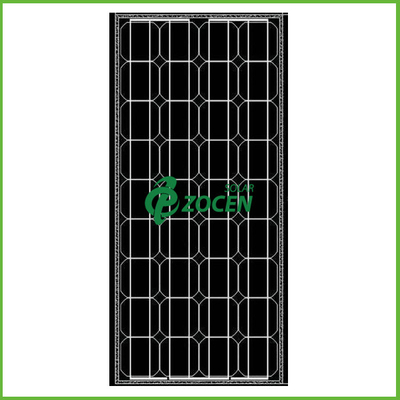

Industrial 90W Mono PV Custom Solar Panels With High Transmittance PV Glass

small.img.alt small.img.alt small.img.alt small.img.alt

Large Image :  Industrial 90W Mono PV Custom Solar Panels With High Transmittance PV Glass Get Best Price

Product Details:
Place of Origin: China
Brand Name: ZOCEN
Certification: CE, CQC, IEC, TUV, CEC, MCS, CHUBB, BV, ISO9001
Model Number: ZCM-90
Payment & Shipping Terms:
Minimum Order Quantity: negotiation
Price: negotiation
Packaging Details: 100 pieces per box, 10 boxes per carton
Delivery Time: 5-10 days
Payment Terms: Ex works
Supply Ability: 200MW/year
Detailed Product Description
High Light:

solar photovoltaic module


custom shaped solar panels


Monocrystalline solar cells
Positive tolerance

25 years

Producion Capacity
200MW / year
Deep blue











90W Mono PV Solar Panels with High Transmittance PV Glass, Strong Aluminium Frame


1> Quick Detail:

  • Place of Origin: China
  • Brand Name: ZOCEN
  • Model: ZCM-90
  • Certificate: CE, CQC, IEC, TUV, CEC, MCS, CHUBB, BV, ISO9001


2> Description:

  • About solar PV (photovoltaic) panels

Solar Photovoltaic Panels are also known as PV panels. These panels comprising an array of PV cells which captures the energy from the sun directly and converts it into electricity. Some of the materials for making solar photovoltaic panels include monocrystalline silicon, polycrystalline silicon, microcrystalline silicon, cadmium telluride and copper indium sulphyde.

There is an increasing demand for alternate and renewable sources of energy to meet the ever growing energy needs. With the advancement of solar technology the production of solar photovoltaic panels has increased by more than two times during the past decade or so. No wonder then photovoltaic production is one of the fastest growing technologies in the world today. The best way to describe solar photovoltaic panel technology is that it is a technique that helps in the generation of solar power by converting the solar energy into electricity through the use of PV cells.

The solar photovoltaic panels generate electricity directly by using the sun’s radiation. The electricity so generated is used for meeting different kinds of energy requirements. It is used for powering electric devices and electronic appliances and for recharging batteries. Initially PV cells were used for generating power for spacecraft and orbiting satellites. Nowadays, a large number of PV modules are applied for creating grid connected power generation. By using and inverter you can convert DC power to AC power. This power can be used to generate electricity for rural homes, power boats, electric cars and recreational vehicles.

You can now build Solar Photovolataic panels on the roof top of your homes. You can use the power generated from the solar photovoltaic panels as a main source of electric power or use it as an alternate source. By using it as a main source of power you will be able to save on long term electricity costs as you will no longer have to pay regular electricity bills to your local utility company. Lastly, you will be able to generate electricity in an unpolluted manner and contribute to a clean and green environment.


  • Bypass Diodes

You may have read about diodes and solar panels. But what are they, and what do they do? Well there are 2 main types commonly used in solar panels. Bypass and Blocking. In this article I will explain about Bypass Diodes.

In almost all crystalline photovoltaic solar panels there are bypass diodes. Panels are made up of silicon cells that each produces approximately half a volt. Linking these together in series allows the voltage to increase to the desired output. For example 36 cells will produce 18v. Once a load is attached this will reduce to around 12-14v making a perfect 12v Solar panel.So we’ve learnt that connecting 36 cells in a row makes a good 12v panel. But 36 cells in a row can make for a strange and awkward shape panel. The answer is to lay the cells in shorter rows and make the panel more compact. The string is then made into 4 shorter strips and connected at the ends making effectively a “W” shape.

Now the panel is compact and pretty. But there is another reason for this “W” shape. And on larger panels this is done even more to make more points/ends. The reason is this. If at any time you cover over one of the cells the voltage will drop hugely. You may think that by covering one of the 36 cells would reduce the voltage from 18v to 17.5v. After all each cell is 0.5v and only one have been covered. The reality is that it will drop to more like 5v rendering the panel almost useless.


With the “W” shape layout this allows for a bypass to be made and effectively removing the covered cell from the circuit. Between the points at the top of the “W” 2 diodes are inserted to span the gap. The diode allows the energy to take the easiest route. If there is no energy or significantly less energy being generated by one of the sections it finds an easier route through the diode. The voltage is now 9v and not the stunted 5v.

You may be saying “9 volt is still useless”. And in this example you are right. It may not be enough to charge a 12v battery successfully. But in home systems particularly as well as 24v and higher voltage systems 2 or more panels are linked up to make a “WWWWWW”shape. Now if one of the sections is covered the voltage drop is low as a percentage of the total.

Covered cells can occur in instances like the dreaded bird mess , a bird, leaves, heavy levels of dust and dirt, snow and on very large installations even small clouds.


3> Features:

  • High Performance Solar Panel
  • Monocrystalline Cells
  • Low Reflection of Sunlight
  • High Light Absorption
  • Functions perfectly under low light or panel being partly shaded
  • Top Range Alloys Anodized Frame with Corner Protectors ( guaranteed no rust )
  • CHUBB insurance company to guarantee the quality


4> Specifications

  • Electrical Characteristics
Maximum Power(Pmax)
Power Tolerance
Open Circuit Voltage(Voc)
Short Circuit Current(Isc)
Maximum Power Voltage(Vmp)
Maximum Power Voltage(Imp)
Max. System Voltage
Max. Series Fuse Rating
Solar Cells


Bypass Diodes
1pcs 12A
Temperature Coefficients of Pmax
Temperature Coefficients of Voc
Temperature Coefficients of Isc
NOTC-Nominal Operating Cell Tepm.
STC Condition
1000W/m2, AM1.5, 25°C

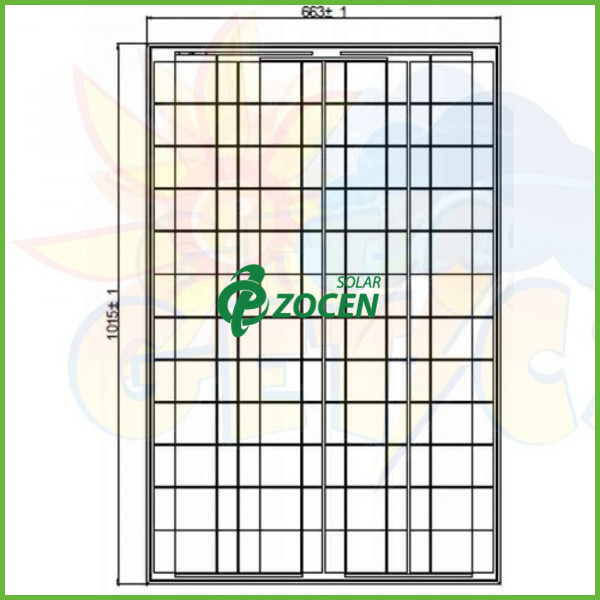

  • Mechanical Characteristics
Anodized Aluminum Alloy
Front Cover

3.2mm thick low iron temperature glass

Back Cover
EVA(Ethylene vinyl acetate)

Anodized aluminum alloy, double wall

Junction Box
IP65 rated, TUV certification
Max Load
Output cables

4.0m㎡ 12AWG cable with weatherproof connectors.cable lengths 900mm




5> Quality Control

  • Robust, corrosion resistant aluminum frame independently tested to withstand wind and snow loads of up to 2400Pa and 5400Pa,respectively,ensuring mechanical stability.
  • Manufacturing facility certifed to ISO9001 Quality Management System standards.
  • Module packaging optimized to protect product during transportation and minimize on-site waste.


6> Crystallines Solar Panel Application

  • Solar power station
  • Rural electrification, Small home power systems
  • Power supply for traffic, security, gas industry
  • 12V battery charging systems
  • Other industrial and commercial applications


7> ZOCEN SOLAR Overview


Industrial 90W Mono PV Custom Solar Panels With High Transmittance PV Glass 0

ZOCEN Factory


Industrial 90W Mono PV Custom Solar Panels With High Transmittance PV Glass 1

solar panels Production Shop




Industrial 90W Mono PV Custom Solar Panels With High Transmittance PV Glass 2
