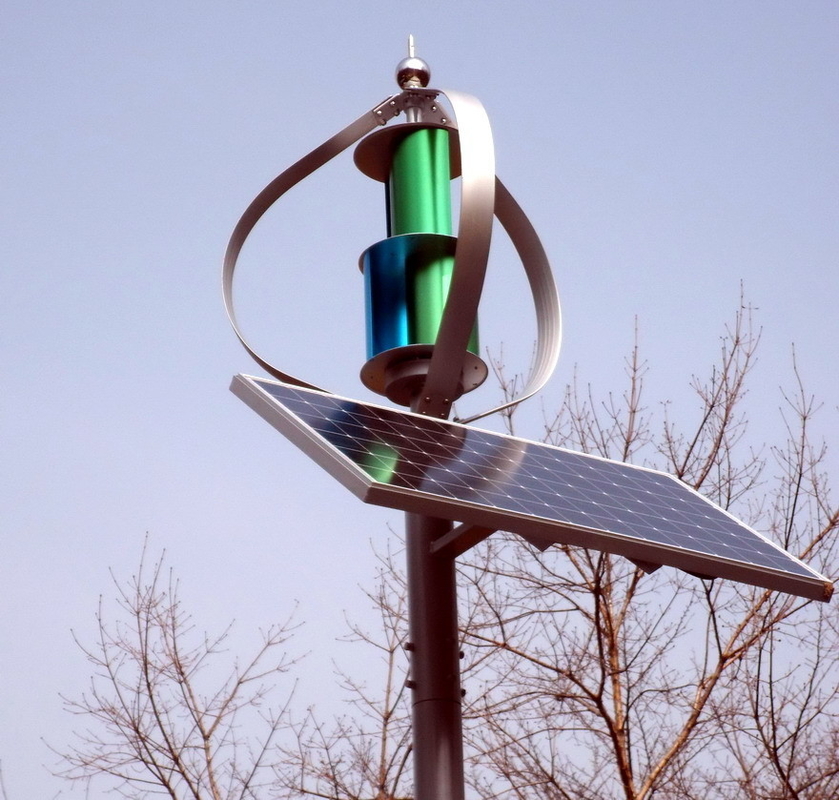

High Efficiency Maglev Wind Power Generator for 30W Camera System


Large Image :  High Efficiency Maglev Wind Power Generator for 30W Camera System Get Best Price

Product Details:
Place of Origin: China
Brand Name: TYPMAR
Certification: CE, ISO9001
Model Number: CXF-300
Color: Red and blue
Independent: Yes
Patented: Yes
Technical support from factory: Yes
Camera: 24hrs ON
Control type: Remote control
Payment & Shipping Terms:
Minimum Order Quantity: 3 sets
Price: Negotiable
Packaging Details: Wooden case
Delivery Time: 7 days
Payment Terms: TT, LC
Supply Ability: 2000 PCS
Detailed Product Description
High Light:

wind solar hybrid power system


hybrid wind and solar systems


High Efficiency Maglev Wind Power Generator for 30W Camera System



Quick Details

  1. Startup at low wind speed of 1m/s
  2. Higher efficiency compared to traditional HAWT
  3. Works even in turbulence
  4. Visually pleasing appearance
  5. Turbine construction is resistant to gale 60m/s (132MPH)
  6. Robustness and adaptation to all possible environmental conditions thanks to material of aluminum alloy or stainless steel
  7. Life span: at least 20 years
  8. 300W Maglev Wind Generator for 30W Camera System works 24 hours




The CXF series of maglev wind generator undergoes a continuous improvement process, which incorporates exterior design, utility design, electrical engineering, dynamic engineering, power mechanics, aviation air engineering, wind tunnel testing, lightening protection, computer simulation techniques and other multiple specialities.


TYPMAR maglev wind generator have 6 models, 200W, 300W, 400W and 600W, 1KW, 3KW are for camera system ,hybrid street lighting, remote site monitoring, home use, telecom station or any place need independent power.


For the monitoring system power supplying renewable energy, we have a project in North China, Liaoning Province. The installation place is a historic reservation site. Total 40 towers installed.


Generally the configuration as below:


Maglev wind generator : 300W, 24V 3 sets

Solar Panel : 150W,24V 6 pcs

Camera : 35W,24V 4 pcs

Tower : 12m

Gel Batteries : 200AH, 8 pcs





Maglev wind generator


Type CXF200 CXF300 CXF600 CXF1000 CXF3000
Rated Power 200W 300W 600W 1000W 3000W
Size(Height / Diameter) 1035/1150mm 1090/1240mm 1320/1540mm 2200/2400mm 3370/3700mm
Turbine Weight 22.5KG 31KG 49KG 180KG 415KG
Blades Material Aluminum alloy Aluminum alloy aluminum alloy aluminum alloy aluminum alloy
Blades Qty. 3 3 3 3 3


wind speed

1m/s 1.3m/s 1.3m/s 1.5m/s 1.5m/s

Cut in

wind speed

2m/s 3m/s 3m/s 5m/s, 3.5m/s 3.5m/s
Rated Wind Speed 13m/s 12m/s 13m/s 13m/s 13m/s
Cut out Wind Speed 16m/s 15m/s 15m/s 15m/s 15m/s
Survival Wind Speed 60m/s 65m/s 65m/s 60m/s 60m/s
Generator Type AC,3 phases AC,3 phases AC,3 phases AC,3 phases AC,3 phases
Controller output voltage DC12V DC24V/12V DC24V/12V/48V DC48V/24V DC48/96V
Controller output current <12Amp <20Amp <30Amp <50Amp <130Amp
Controller braking system

3-Phase /short circuit protection/ NFB/

Manual break or automatic brake optional

Ambient Temperature -30~50 ℃ -40~50 ℃ -40~50 ℃ -40~50 ℃

-40~50 ℃





Rated power Approx. 300Wh at 13 m/s (26 mph)
Swept Area 0.8 m2
Height / Diameter 1.23/1.09 m
Weight 27 kg
Shipping Dimensions 1160 x 520 x 790 mm 56 kg
Startup Wind Speed 1 m/s (2.6 mph)
Voltage 12, and 24 V AC
Turbine Controller Smart Wind $ solar hybrid controller
Body Permanent mold cast aluminum
Blades (7) Injection-molded aluminum
Alternator Permanent maglev generator
Overspeed Protection 3 phases short-circuit braking control
Survival Wind Speed 65m/s
Mount Inner diameter 80MM 140mm outer diameter
Wind Speed Operating Range 1-15 m/s (8-49 mph)
Optimum Wind Speed Range (RPM) 8-10 m/s ( 750-800RPM)
