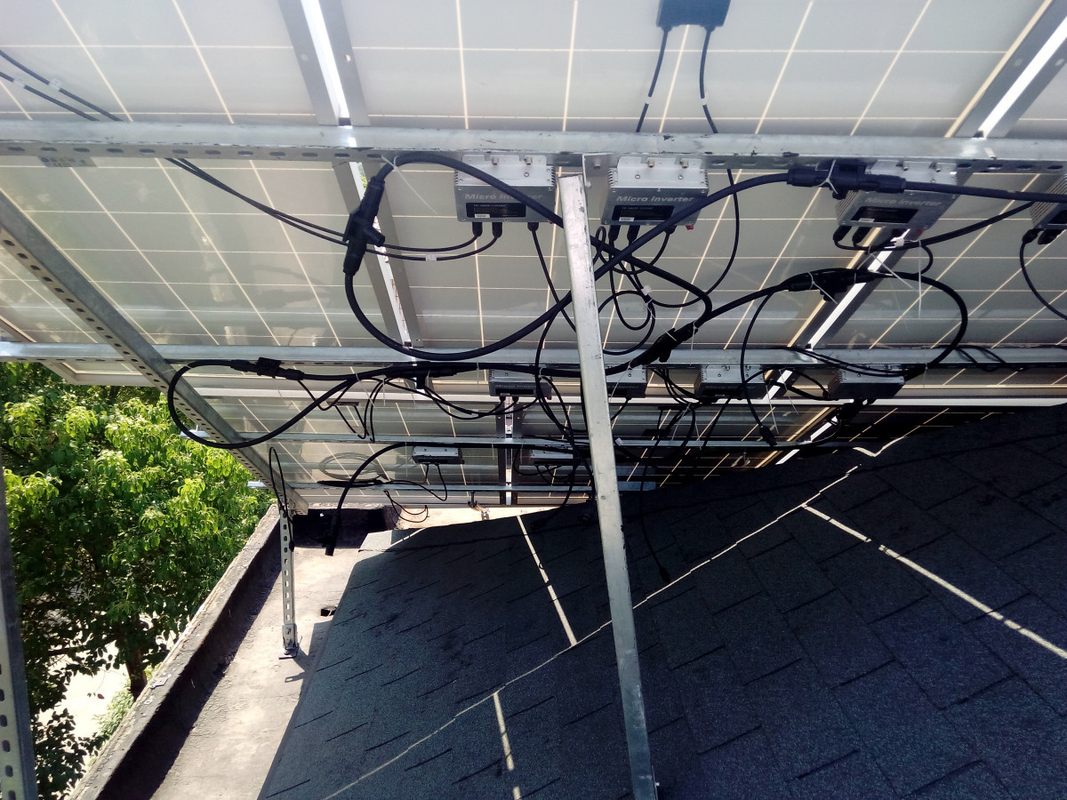

Green Energy Rooftop 3.6KW On Grid Home Built Solar Power System


Large Image :  Green Energy Rooftop 3.6KW On Grid Home Built Solar Power System Get Best Price

Product Details:
Place of Origin: China
Brand Name: CESC
Certification: CE/CSA/TUV
Model Number: CESC-OG3600A
Payment & Shipping Terms:
Minimum Order Quantity: 50 Units
Price: Negotiation
Packaging Details: Carton Package
Delivery Time: 10 working days after received your payment
Payment Terms: T/T or LC at sight
Supply Ability: 3,0000pcs per month
Detailed Product Description
Product Name: 3.6KW Home Solar Power System Appliants: Home Solar Power System
Output Power: 3600W Quantity Of Solar Panel: 12Pcs 300W Solar Panel
Quantity Of Inverter: 3Pcs Output Voltage: 230Vac Or 120Vac
Type: On Grid Monitor Function: Optional
High Light:

Domestic Solar Power Systems


Solar Panel Roof Mounting Systems

3.6KW High Efficiency Home Solar On Grid Power System for Roof Installation


TYPE NO: P7Y-300
QTY: 12pcs
CONNECTING WAY: One of the inverter input connected to a pv panel
SPEC: CELLS: 156mm polysilicon cells*72
Pm(Wp): 300W
Vm(V): 36V
Im(A): 8.33A
Voc(V): 44.8V
Isc(A): 8.73A
size(MM): 1956*992*45MM
N.W(KG): 22.5KG
SOLAR BRACKET Material: Galvanized steel
SPEC: 2*6,suit for solar panels array
Install place: ground or flat roof
QTY: 3 pcs
Input Data: Maximum input power: 4×300Watt
Recommend the use of PV modules: 4×300W/Vmp>30V/Voc<50V
Maximum input DC voltage: 50V
Peak power tracking voltage: 22-45V
Operating Voltage Range: 17-50V
Min / Max start voltage: 22-50V
Maximum DC short current: 80A
Maximum Input Current 54.4A
Output Data: Peak power output: 1200Watt
Rated output power: 1150Watt
Rated output current: 9.58A (80-160VAC)
5A    (180-260VAC)
Output Wave: Pure Sine Wave(THD≤5%)
Output vltage: 80-160V50HZ/180-260V60HZ
Power factor: >98%
Maximum output efficiency: 91.2% (80-160VAC)
92.5% (180-260VAC)
Protection Functions: DC over-voltage protection/over-voltage self-recovery
DC low-voltage protection/low-voltage self-recovery
Islanding protection: <2s
Features: Communication Mode: Power Line
Power transmission mode Reverse transfer, load priority
Monitoring System Lifetime free
Size: 370mm×305mm×38mm
N.W.: 2.85kg
WVC-MODEM Features: Collection data from inverter,transfer to PC
A monitoring software can monitor  6 PCS WVC-MODEMs.
A WVC-MODEM can monitor 100 PCS inverters.
WVC-FILTER Features: Blocking the signal on circuit.
Maximum current 50A
SPEC&QTY: 4mm2 sq with M25 connectors: 4m
SPEC&QTY: 4mm2 sq with M25 connectors: 10m
