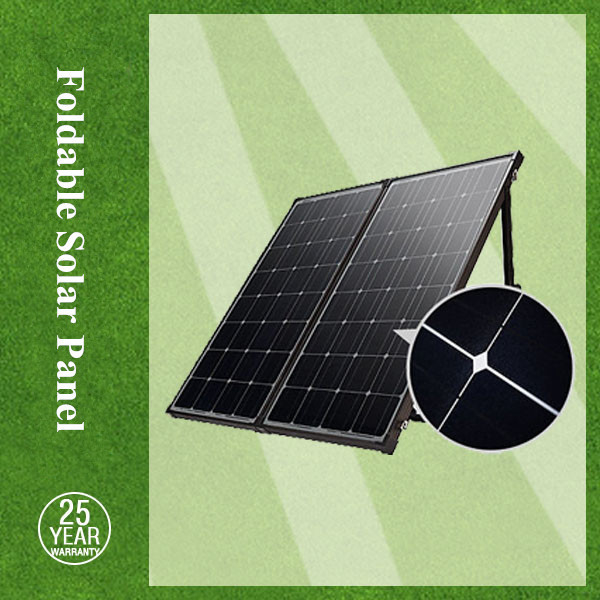

Foldable Monocrystalline Solar Panel 140W With PMW Or MPPT Controller
(Solar Panel & Single solar panel & portable folding solar panel& portable lighting system& solar lighting kits)
1). Professional Manufacturers , experienced staff, full set of advanced production process, every process is strictly controlled and tested to insure quality. Main in Silicon Solar PV Module;solar lighting kits;
2). Certificate:CE/TUV/IEC/ EN61215/EN61730/ISO9001:2008 /CEC
3). Cell Grade A;(Bosch cells;Solar world cells);
4). High Efficiency, low iron tempered Anti-reflecting/coating film 3.2mm glass; EVA Cross-linking degree 85%;
Aluminum alloy high thickness frame, production by GP & process and quality easy controlled. 3 or 6 bypass diodes , 90mm 4m2 cable , MC4 or Anderson connectors & waterproof junction box, MPPT controller.
5). Manufacturing Quality Warranty 10Years , Performance Warranty 10Years 90% Power output .25Years 80% Power output .
Remark: We can provide Malaysia /Taiwan /Thailand Form A to avoid European customs duty.
Polycrystalline silicon 2 foldable solar moduels | |||||||
Module type : | Rated Pmpp [W] | Maximum power voltage(V) | Maximum power current(A) | Open circuit voltage(V) | Short circuit current(A) | Dimensions when folded : | weight( kg ) |
GS-2F-160W | 160 | 18 | 8.89 | 22.5 | 9.48 | 675 x 780 x 70 | 20.8kg |
GS-2F-140W | 140 | 16 | 8.75 | 20 | 9.33 | 675 x 700 x 70 | 18.2kg |
GS-2F-120W | 120 | 14 | 8.57 | 17.5 | 9.14 | 675 x 620 x 70 | 15.6kg |
GS-2F-100W | 100 | 18 | 5.56 | 22.5 | 5.93 | 675 x 540 x 70 | 13.0kg |
GS-2F-80W | 80 | 20 | 4 | 23.5 | 4.54 | 675 x 460 x 70 | 10.4kg |
Monocrystalline silicon 2 foldable solar modules | |||||||
Module type : | Rated Pmpp [W] | Maximum power voltage(V) | Maximum power current(A) | Open circuit voltage(V) | Short circuit current(A) | Dimensions when folded : | weight( kg ) |
GS-2F-160W | 160 | 18 | 8.89 | 22.5 | 9.48 | 675 x 780 x 70 | 20.8kg |
GS-2F-140W | 140 | 16 | 8.75 | 20 | 9.33 | 675 x 700 x 70 | 18.2kg |
GS-2F-120W | 120 | 14 | 8.57 | 17.5 | 9.14 | 675 x 620 x 70 | 15.6kg |
GS-2F-100W | 100 | 18 | 5.56 | 22.5 | 5.93 | 675 x 540 x 70 | 13.0kg |
GS-2F-80W | 80 | 20 | 4 | 23.5 | 4.54 | 675 x 460 x 70 | 10.4kg |
