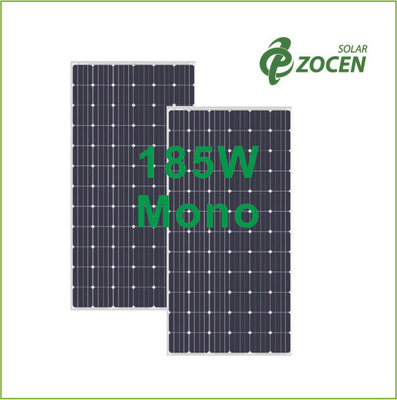

Deep Blue Anodized Aluminum Frame Monocrystalline Solar Panels 185Watt

large.img.alt
small.img.alt small.img.alt small.img.alt small.img.alt

Large Image :  Deep Blue Anodized Aluminum Frame Monocrystalline Solar Panels 185Watt Get Best Price

Product Details:
Place of Origin: China
Brand Name: ZOCEN
Certification: CE, CQC, IEC, TUV, CEC, MCS, CHUBB, BV, ISO9001
Model Number: ZCM5-72P-185W
Payment & Shipping Terms:
Minimum Order Quantity: negotiation
Price: negotiation
Packaging Details: 12 pieces per box, 2 boxes per carton
Delivery Time: 5-10 days
Payment Terms: Ex works
Supply Ability: 30000 pieces per month
Contact Now
Detailed Product Description
High Light:

monocrystalline solar module

,

mono crystal solar panels



Deep Blue Anodized Aluminum Frame Monocrystalline Solar Panels 185Watt



1> Quick Details:



Materials
 125*125mm Monocrystalline solar cells
Max.power
 185W
Positive tolerance
 0~3%
Size
 1580*808*35mm
Solar panel efficiency
 14.89%
Type
 Mono
Bypass Diodes
 3pcs 12A
Warranty
 25 years
Producion Capacity
 200MW / year
Color
 Deep blue























2> Descriptions



  1. Product name: 185W Monocrystalline solar panels / modules / photovoltaic solar panels / PV solar panels
  2. Solar cell: Mono-crystalline, Anti-reflective coating used to reduce the reflectivity and enhance transmittance.
  3. Tempered Glass: 3.2mm Low Iron and Anti-reflective coating glass increase the power output and mechanical strength of solar module. Mechanical load ≥2400Pa , transmittance ≥91.6%
  4. EVA: Anti-aging,Transmittance ≥91% , Adhesive Capacity >85%
  5. Back Sheet: high frame resistant & Double-sided fluorine TPT, to prevent destroying and water, it’s reflectivity ≥87%, peeling strength ≥ 40N/cm.
  6. Aluminum Frame: Anodized aluminum alloy to effectively improve the corrosion resistance and strength
  7. Junction Box: 3pcs 12A Diode + 90cm 4mm2 Solar Cable
  8. Life time: 25 years
  9. Power specification at 1kW/m 2, AM 1, 5
  10. Output cable: multi contact connectors
  11. Warranty: 10years workmanship; Guarantee the power 90% in the first 12 years; Guarantee the power 80% in 25years.
  12. Certification: CE, TUV, IEC, MCS, CQC, CEC, CHUBB, BV, ISODeep Blue Anodized Aluminum Frame Monocrystalline Solar Panels 185Watt 0



3> Features:

  • High Performance Solar Panel
  • Monocrystalline Cells
  • Low Reflection of Sunlight
  • High Light Absorption
  • Functions perfectly under low light or panel being partly shaded
  • Top Range Alloys Anodized Frame with Corner Protectors ( guaranteed no rust )
  • CHUBB insurance company to guarantee the quality



4> Specifications

  • I-V Curves

Deep Blue Anodized Aluminum Frame Monocrystalline Solar Panels 185Watt 1



  • Electrical Characteristics
Maximum Power(Pmax)
 185
Power Tolerance
 ±3%
Open Circuit Voltage(Voc)
 45.0
Short Circuit Current(Isc)
 5.48
Maximum Power Voltage(Vmp)
 36.40
Maximum Power Voltage(Imp)
 5.09
Module Efficiency
 14.50%
Max. System Voltage
 1000VDC
Solar Cells

Monocrystalline125*125mm(5 inch)

Cells series
 72pcs(6*12)
Bypass Diodes
 3pcs 12A
Temperature Coefficients of Pmax
 -0.47%/°C
Temperature Coefficients of Voc
 -0.35%/°C
Temperature Coefficients of Isc
 0.05%/°C
NOTC-Nominal Operating Cell Tepm.
 45℃(±2°C)
STC Condition
 1000W/m2, AM1.5, 25°C

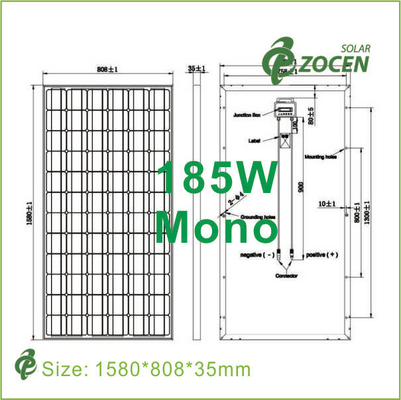

  • Engineering Drawing

Deep Blue Anodized Aluminum Frame Monocrystalline Solar Panels 185Watt 2

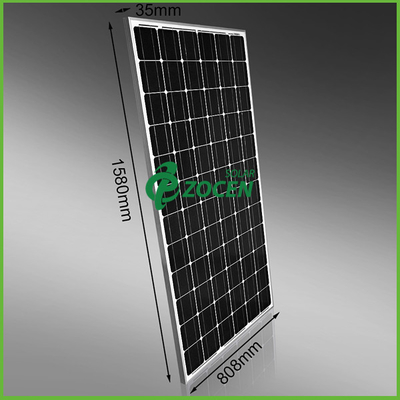

  • Mechanical Characteristics
Dimension
 1580*808*35(mm)
Frame
 Anodized Aluminum Alloy
Construction

Front: High transmision 3.2mmTempered glass; Rear: White PET; Encapsulant: EVA
Output cables

4.0m㎡ 12AWG cable with weatherproof connectors.cable lengths 900mm
Weight
 15.5KGS



  • Packing configuration
Container
20“GP
40“GP
40“HQ
Module dimension
 1580*808*35mm
Pieces per pallet (12 pallets / Container )
 24 28 28
Pieces per box ( 2 boxes / pallet )
 12 28 56
Pieces per container
 312 728 784





4> Quality Control

  • Robust, corrosion resistant aluminum frame independently tested to withstand wind and snow loads of up to 2400Pa and 5400Pa,respectively,ensuring mechanical stability.
  • Manufacturing facility certifed to ISO9001 Quality Management System standards.
  • Module packaging optimized to protect product during transportation and minimize on-site waste.



5> Crystallines Solar Panel Application

  • Solar power station
  • Rural electrification, Small home power systems
  • Power supply for traffic, security, gas industry
  • 12V and 24V battery charging systems
  • Other industrial and commercial applications



6> ZOCEN SOLAR Overview



Deep Blue Anodized Aluminum Frame Monocrystalline Solar Panels 185Watt 3

ZOCEN Factory
