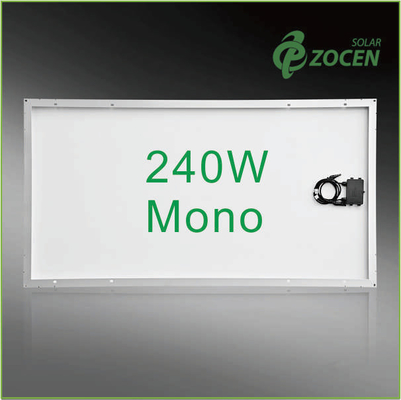

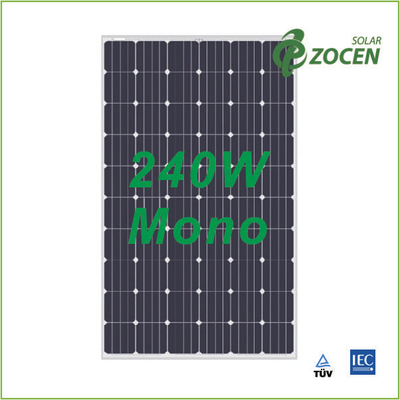

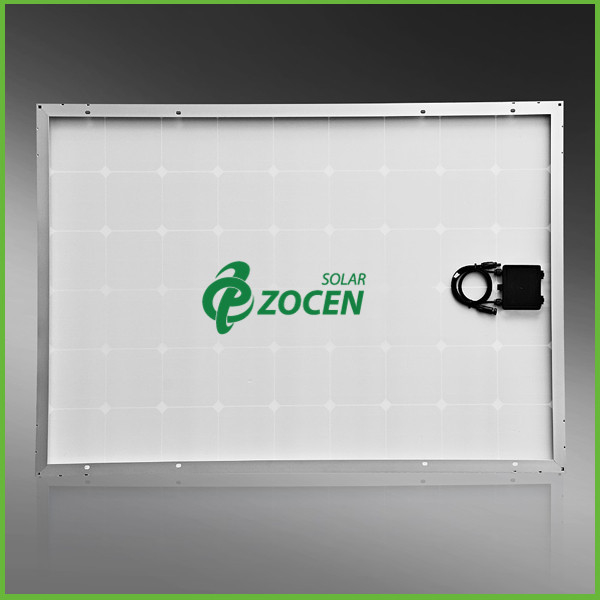

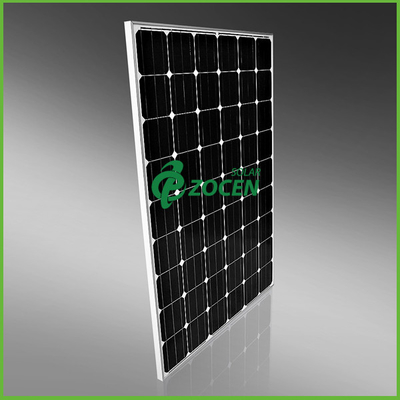

CHUBB Insured 240W Monocrystalline Solar PV Panels , Silver Aluminum Frame

small.img.alt small.img.alt small.img.alt small.img.alt

Large Image :  CHUBB Insured 240W Monocrystalline Solar PV Panels , Silver Aluminum Frame Get Best Price

Product Details:
Place of Origin: China
Brand Name: ZOCEN
Certification: CE, CQC, IEC, TUV, CEC, MCS, CHUBB, BV, ISO9001
Model Number: ZCM6-60P-240W
Payment & Shipping Terms:
Minimum Order Quantity: negotiation
Price: negotiation
Packaging Details: 21pcs/pallet
Delivery Time: 5-10 days
Payment Terms: Ex works
Supply Ability: 30000pcs/month
Detailed Product Description
Peak Power: 240W Output Tolerance: 0~+3%
Wind Load: 2400Pa Snow Load: 5400Pa
Weak Light Tolerance: High Efficiency: High Efficiency
Manufacturer: ISO9001 And ISO14001 Approved Insurance: Chubb Insurance
Lifespan: 25 Years Warranty: 10 Years For Workmanship; 25 Years For Linear Performance
High Light:

monocrystalline solar module


mono crystal solar panels

Chubb Insured 240W Monocrystalline Solar PV Panels , Silver Aluminum Frame
1> Quick Details:

  • Product: 240W Monocrystalline Solar Panel
  • Model: ZCM6-60P-240W
  • Materials: 156*156mm Monocrystalline solar cells
  • High efficiency: The ZCM5-60P-240W Mono PV Module is 60-cell with a higher output, suitable for residential and commercial
  • Lifetime: more than 25 years
  • Guaranteed maximum performance reduction of only 0.7% per year

  • Guaranteed performance of 90% after 11 years

  • Guaranteed performance of 80.2% after 25 years

  • Certificate: CE, CQC, IEC61525, IEC61730, TUV, CEC, MCS, CHUBB, BV, ISO9001

2> Quality & Safety

  • Reliable:Every component is tested to meet 3 times IEC requirement
  • Warranty: 25-year linear performance warranty and 10-year product warranty
  • Extreme Temperature Range: This solar panel is able to withstand extreme temperature ranges with excellent output, from 40+/o to 90 Celsius
  • Safety: Class II Safety standard, IEC61525 approval
  • Max Load 5400Pa: Designed to withstand heavy accumulations of snow and ice
  • Tolerance: Positive performance tolerance
  • Glass: Low iron tempered glass with anti-reflective coating
  • Robust, corrosion resistant aluminum frame independently tested to withstand wind and snow loads of up to 2400Pa and 5400Pa,respectively,ensuring mechanical stability.
  • Panel packaging optimized to protect product during transportation and minimize on-site waste.

3> Specifications

  • 240W Monocrystalline Solar PV Panel Electrical Characteristics
Maximum Power(Pmax)
Power Tolerance
Open Circuit Voltage(Voc)
Short Circuit Current(Isc)
Maximum Power Voltage(Vmp)
Maximum Power Voltage(Imp)
Module Efficiency
Max. System Voltage
Solar Cells

Monocrystalline156*156mm(6 inch)

Cells series
Bypass Diodes
6pcs 12A
Temperature Coefficients of Pmax
Temperature Coefficients of Voc
Temperature Coefficients of Isc
NOTC-Nominal Operating Cell Tepm.
STC Condition
1000W/m2, AM1.5, 25°C


  • 240W Monocrystalline Solar PV Panel Mechanical Characteristics
Anodized Aluminum Alloy

Front: High transmision 3.2mmTempered glass; Rear: White PET; Encapsulant: EVA

Output cables

4.0m㎡ 12AWG cable with weatherproof connectors.cable lengths 900mm


4> Crystallines Solar Panel Application

  • Solar power station
  • Rural electrification, Small home power systems
  • Power supply for traffic, security, gas industry
  • 12V and 24V battery charging systems
  • Other industrial and commercial applications
