pv solar panel,
photovoltaic solar module
|Place of origin||China(Mainland)||Brand name||ZOCEN|
|Model||ZCBIPV-180||Materials||125*125mm Mono solar cell|
|Size||1000X1700mm||Number of Cells||72pcs(6*12)|
|Max. Power||265W||Positive tolerance||+3%|
What is BIPV?

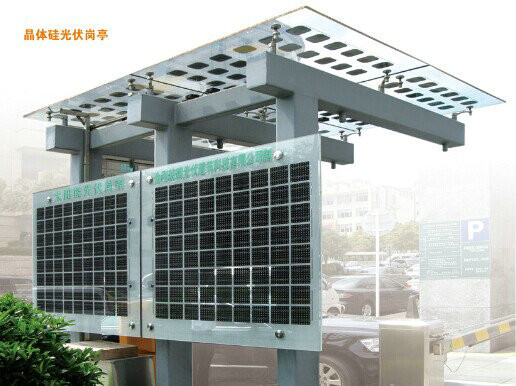

Building-Integrated Photovoltaics (BIPV) are photovoltaic systems which are built into a building, rather than being added on at a later date. Ideally, BIPV are incorporated into the design of a building in the early planning stages. The architect works with photovoltaic engineers and other experts to create a design which will be aesthetically pleasing and effective.

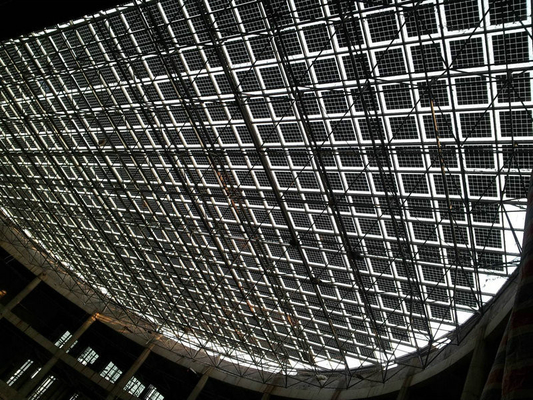

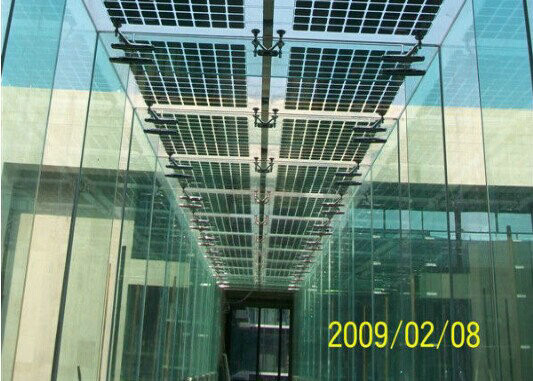

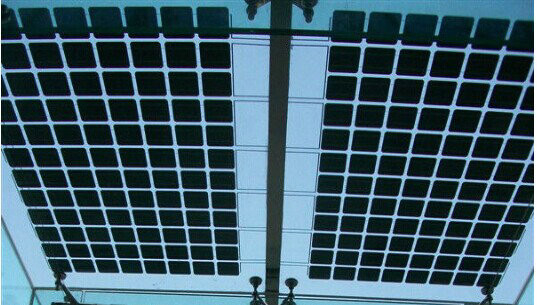

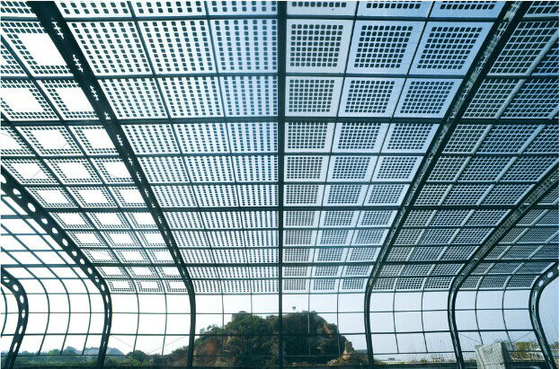

> Roof, Skylight, Facade, Sunshade, Balustrade, Floor
> Point-fixed System, Visible Frame, Semi-visible Frame, Invisible Frame
> Residential, Commercial, Public Buildings
> New and Existing Construction
> On-grid Utility and Commercial Systems

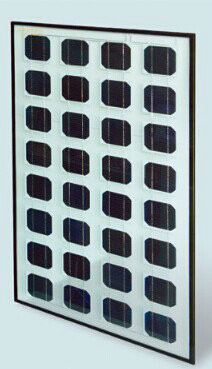

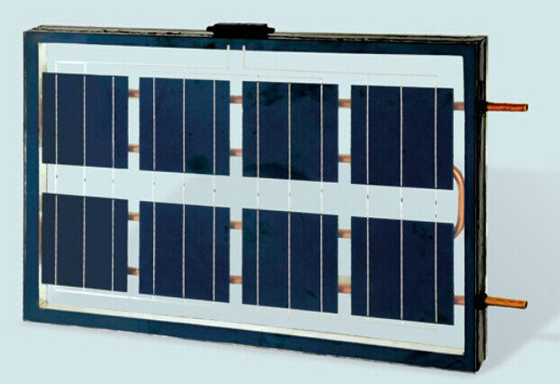

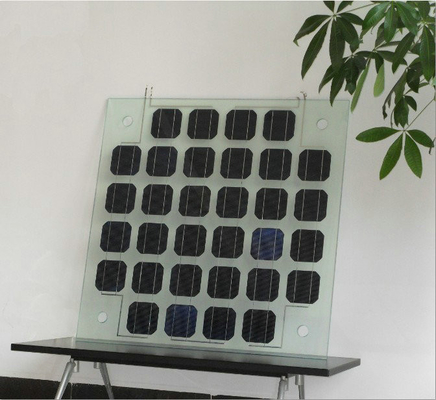

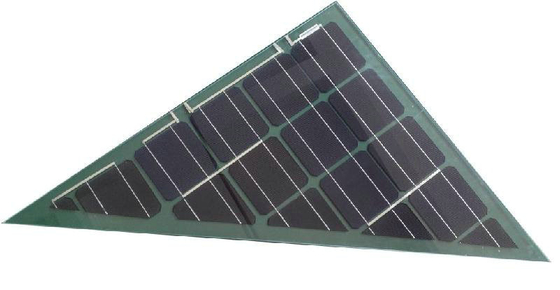

Features of Transparent Solar Panel
> Glass-glass module is employed directly as materials of spandrel, cladding, roof improving appeal visually
> Sandwiched high efficiency cells gives robust performance
> Top quality EVA interlayer ensures product warranty and safety
> Frameless, tailor-made specification, variable light transmission and multi-color option enable architectural design freely
> Product name: Transparent PV double glass solar panel / module
> Solar cell: Mono-crystalline, Anti-reflective coating used to reduce the reflectivity and enhance transmittance.
> Tempered Glass: Low Iron and Anti-reflective coating glass increase the power output and mechanical strength of solar module. Mechanical load ≥2400Pa , transmittance ≥91.6%
> EVA: Anti-aging,Transmittance ≥91% , Adhesive Capacity >85%
> Back Sheet: high frame resistant & Double-sided fluorine TPT, to prevent destroying and water , it’s reflectivity ≥87%, peeling strength ≥ 40N/cm.
> Junction Box: IP67 rated, 3 bypass Diodes + 90cm 4mm2 Solar Cable
> Life time: 25 years
> Power specification at 1kW/m 2, AM 1, 5
> Output cable: multi contact connectors
> Resistance: 277 steel ball falls down from 1m height and 60m/s wind
> Warranty: 10years workmanship; Guarantee the power 90% in the first 12 years; Guarantee the power 80% in 25years.
> Certification: CE, TUV, IEC, MCS, CQC, CEC, CHUBB, BV, ISO
> More than 7 years experience of solar module encapsulation
> fully germany automatic welding machine and lay-up
> CHUBB insurance company to guarantee the quality of our products
> 100% EL TEST before and after laminator
> Annual capacity: 200mw/year, which is Full Automatic Production Line, from single cell soldering to framing are all performed by equipments. Our total capacity is scheduled to reach 500mw/year until 2015.
> 31MW solar module have been used in Chinese major grid-connected projects.
> Own 45 patents and 3 module production bases in different cities.
> So we guarantee each piece of our panel has perfect appearance, positive power performance, and without quality hidden trouble.
|Open Circuit Voltage(Voc)||44.70|
|Short Circuit Current(Isc)||5.23|
|Maximum Power Voltage(Vmp)||36.50|
|Maximum Power Voltage(Imp)||4.93|
|Max. System Voltage||1000VDC|
|Cell Size and Series||Mono-crystalline 156*156mm(6 inch) 60pcs(6*10)|
|Bypass Diodes||3pcs 12A|
|Temperature Coefficients of Pmax||-0.44%/℃|
|Temperature Coefficients of Voc||-0.33%/℃|
|Temperature Coefficients of Isc||0.055%/℃|
|NOTC-Nominal Operating Cell Temperature||45℃(±2℃)|
|STC Condition||Irradiance level 1,000W/P㎡, Spectrum AM1.5, and Cell Temperature 25℃|
|Frame||Black Anodized Aluminum Alloy|
Front: High transmisiion 3.2mm
Rear: Black polyester;
4.0m㎡ 12AWG CABLE WITH WEATHERPROOF CONNECTORS.
Cable lengths 900mm
