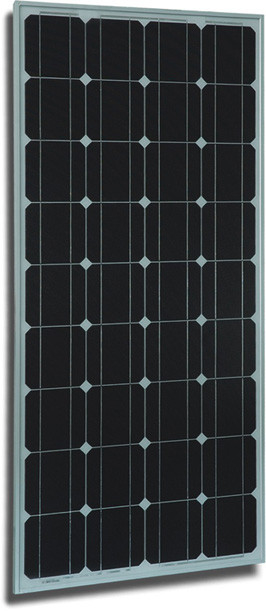

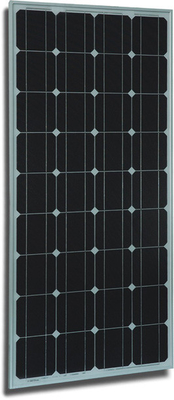

5 inch Monocrystalline Solar Panel, 75 - 90W


Large Image :  5 inch Monocrystalline Solar Panel, 75 - 90W Get Best Price

Product Details:
Place of Origin: Jiangyin City Jiangsu Prov. China
Brand Name: TM SOLAR
Certification: TUV CQC CGC
Model Number: MONO90W5
Payment & Shipping Terms:
Minimum Order Quantity: 100 PCS
Price: USD0.79 PER WATT
Payment Terms: 100% TT IN ADVANCE
Supply Ability: 240MW PER YEAR
Detailed Product Description
High Light:

China solar panel


solar panel


mono-crystalline solar panel

5 inch Monocrystalline Solar Panel, 75 - 90W

Series number:MONO75W5  - MONO90W5

Manufacturer:TM Solar Power Co.,Ltd.Jiangyin City, China

Data below are exemplary ones of Model - MONO90W

Cell size: 125 x 125mm (D: 150/165mm),  Cell array: 4 x 9,  36pcs / panel,

Dimension: 1195 x 541 x 30mm,  Gross weight: 8 kgs / panel,  Draining holes at frame: 10

Cable type and length: 4mm2,TUV certified, 750mm;  Connector style: compatible type Ⅳ

Max-power (Pm): 90W; Module power range: Pm≥90W; Power Tolerance: +0 ~+5W

Max-power voltage(Vm): 18.5V; Max-power current(Im): 4.86A

Short-circuit current(Isc): 5.3A

Open-circuit voltage(Voc): 22.4V

Max-system voltage(VDC): 715V(IEC)

Cell efficiency: 16.8% / 16.1%; Module efficiency: 13.9%; Max series fuse: 10A

Pm temperature coefficients:-0.9964 W/centigrade

Isc temperature coefficients: 0.0023 A/centigrade

Voc temperature coefficients: -0.1801 V/centigrade

Nominal operating cell temperature(NOCT): 47+/-2 centigrade

Inquiry to: hansonghw1 at hotmail dot com.


1.Seller should adopt best materials and workmanship to manufacture and supply the above stated commodities to Buyer, 100% checked and TUV,VDE,UL,MCS standards compliant

2.10 years warranty for 90% rated power output, and 25 years for 80% output

3.100% Dielectrical safety test and checking

4.10 year workmanship warranty, 《Warranty Certificate》would be enclosed with the supplied products
