3.7V 280mAh Lithium Ion Rechargeable Batteries For Garden Lighting & Portable Devices
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Nominal Capacity: | 280mAh | Nominal Voltage: | 3.7V |
|---|---|---|---|
| High Light: | lithium ion rechargeable battery pack,18650 lithium ion battery |
||
3.7V 280mAh Lithium Ion Rechargeable Batteries For Garden Lighting & Portable Devices
Quick Detail:
Nominal voltage: 3.7V
Nominal capacity: 280mAh
Dimensions: 10* 28mm
Packed with PCM, wire and connector
Charging temperature: 0 to 45°C
Discharging temperature: -10 to 60°C
Storage temperature: -20 to 60°C
High-standard safety
High-discharge drain
OEM orders are welcome !
And different voltage and capacity and dimension is available!
Applications:
- Lighting, medical instruments and power tools
- Suitable for electric appliances, electric croppers, UPS, e-bikes and medical equipment...
- Golf trolleys, Golf carts,
- UPS backup
- Fire alarm and security systems
- Telecommunication equipment
- Electric equipment and telemeter equipment
- Light equipment, dc 12v led lights
- Wireless lawn movers vacuum cleaner and washing machine
- Toys and consumer electronics
- Solar systems 12v
- Portable power tools measuring and medical equipment Portable video camera portable personal computer
- Garden lighting
- Sound systems
- And etc
Features:
a. Low self-discharge and good discharge performance at low-temperature.
b. Strong charging acceptance and quick-charging capability.
c. Strong over-discharge resistance and charge retention.
d. Maintenance-free and no acid or water for maintenance in usage.
e. Large current discharge performance and have obvious advantages in start up and climbing.
f. High-temperature performance.
g. Eco-friendly.
h. Lightweight and small in size.
i. Safety: no explosion and fire

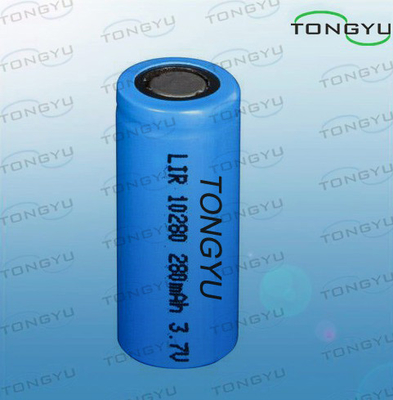

Products Photos:
Specifications:
|
TONGYU Item |
TY-10280 |
|
Nominal Capacity |
280mAh |
|
Nominal Voltage |
3.7V |
|
Normal discharge current |
1C |
|
Maximum current |
2C |
|
Discharge cut-off voltage |
3V |
|
Max charge voltage |
4.2V |
|
Charge method |
CC, CV |
|
Standard Charge current |
0.2CA |
|
Fast charge current |
1CA |
|
Charge temperature |
0℃～45℃ |
|
Discharge temperature |
-20℃～60℃ |
|
Size(D*H) |
10* 28mm |
|
Weight |
7g |
|
Protection function |
Overcharge protection, Over discharge protection, Over current protection, Temperature protection, Balanced function |
TONGYU Lithium ion battery cell part model
|
Model |
Nominal Voltage |
Capacity |
Dimension |
Weight |
||
|
(V) |
Approx |
|||||
|
|
Typical |
Nominal |
D |
H |
(g) |
|
|
|
(mAh) |
(mAh) |
(mm) |
(mm) |
|
|
|
ICR08200 |
3.7 |
80 |
75 |
8.4 |
22 |
2.9 |
|
ICR08600 |
3.7 |
300 |
280 |
8.4 |
60.5 |
9 |
|
ICR10120 |
3.7 |
50 |
45 |
10.2 |
11.2 |
2.4 |
|
ICR10220 |
3.7 |
120 |
110 |
10.2 |
22.3 |
5 |
|
ICR10430 |
3.7 |
320 |
300 |
10.2 |
42.5 |
9 |
|
ICR10440 |
3.7 |
320 |
300 |
10.2 |
43.5 |
9 |
|
ICR14430 |
3.7 |
650 |
620 |
14.1 |
43 |
16 |
|
ICR14250 |
3.7 |
250 |
230 |
14.1 |
23 |
10 |
|
ICR14270 |
3.7 |
310 |
290 |
14.1 |
27 |
11 |
|
ICR14500 |
3.7 |
750 |
720 |
14.1 |
50 |
18 |
|
ICR14650 |
3.7 |
1100 |
1050 |
14.1 |
65 |
24 |
|
ICR17280 |
3.7 |
600 |
550 |
16.5 |
28 |
15 |
|
ICR17335 |
3.7 |
700 |
650 |
16.8 |
34.5 |
18 |
|
ICR17500 |
3.7 |
1100 |
1050 |
16.8 |
50 |
27 |
|
ICR17650 |
3.7 |
1600 |
1500 |
16.8 |
65 |
36 |
|
ICR18490 |
3.7 |
1400 |
1350 |
18.3 |
49 |
33 |
|
ICR18650 |
3.7 |
1900 |
1850 |
18.3 |
64.5 |
43 |
|
ICR18650 |
3.7 |
2000 |
1950 |
18.3 |
64.5 |
43 |
|
ICR18650 |
3.7 |
2200 |
2150 |
18.3 |
64.5 |
45 |
|
ICR18650P |
3.7 |
1500 |
1450 |
18.3 |
64.5 |
33 |
|
ICR18650 |
3.7 |
2600 |
2550 |
18.3 |
65.5 |
62 |
Trade terms
Certificate
FAQ:
Q: 1. Can I have a sample order?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q: 2. What is the lead time?
A:Sample needs 7-10days, mass production time needs 25-30days.
Q: 3. Do you have any MOQ limit?
A: Our MOQ EXW is 10 pcs; MOQ FOB is 100pcs.(Depends on different type battery/battery pack)
Q: 4. How do you ship the goods and how long does it take arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive.
Q: 5. How to proceed the order when customer order products?
A: Inquiry-Confirmation-Send Proforma Invoice-Customer make this payment-Arrange production-ship to
customers-Confirmation-Finish.
Q: 6. How to make this payment?
A: TT, LC , Paypal, Western Union.
Q: 7. Do you offer guarantee for the products?
A: Yes, we offer one year guarantee for the products.
Q: 8. Do you accept OEM/ODM?
A: Yes, it’s available.
