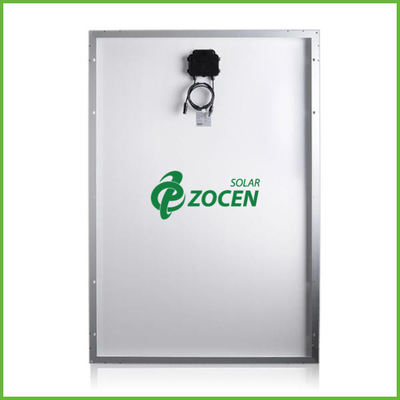

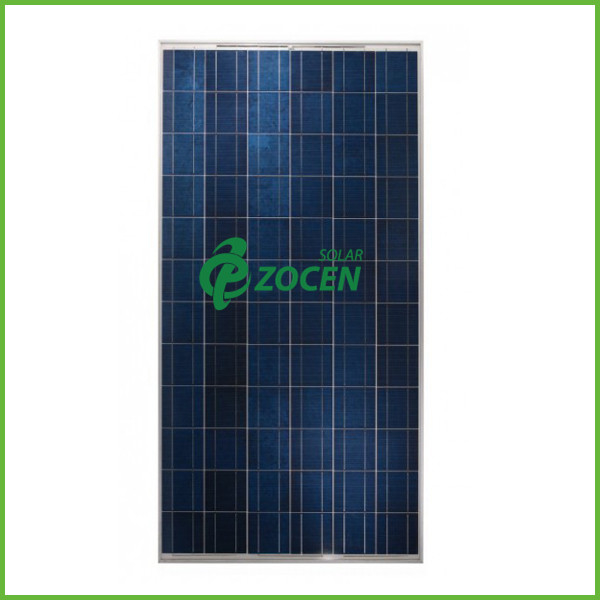

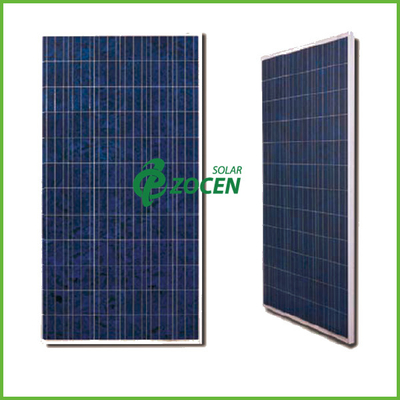

270W 36 Volt Polycrystalline Silicon Solar Panel Polycrystalline Silicon Solar Module

large.img.alt
small.img.alt small.img.alt small.img.alt small.img.alt

Large Image :  270W 36 Volt Polycrystalline Silicon Solar Panel Polycrystalline Silicon Solar Module Get Best Price

Product Details:
Place of Origin: China
Brand Name: ZOCEN
Certification: CE, CQC, IEC61215, IEC61730, Safety Class II, TUV, CEC, MCS, CHUBB, BV, ISO9001
Model Number: ZCP6-72P-270W
Payment & Shipping Terms:
Minimum Order Quantity: negotiation
Price: negotiation
Packaging Details: 24 pieces per pallet
Delivery Time: 10-15 days
Payment Terms: T/T,Paypal
Supply Ability: 30000 pieces per month
Contact Now
Detailed Product Description
High Light:

residential solar panels

,

custom solar panels

270W 36 Volt Polycrystalline Silicon Solar Panel Polycrystalline Silicon Solar Module



1> Quick Details:

Product Name
 270W Polycrystalline Solar Panel
Model
 ZCP6-72P-270W
Solar Cell
 156*156mm Polycrystalline solar cells
EVA
 Anti-aging
Cells in series
 72pcs in a 6*12
Safety
 Class II
Tempered Glass
 3.2mm Low Iron & Anti-reflective coating
Size
 1956*992*45mm
Back Sheet
 Double-sided fluorine TPT
Life time
 25years
Aluminum Frame
 Anodized aluminum alloy
Tolerance
 0~3%



























2> Features:

  • High Performance Solar Panel
  • Monocrystalline Cells
  • Low Reflection of Sunlight
  • High Light Absorption
  • Functions perfectly under low light or panel being partly shaded
  • Top Range Alloys Anodized Frame with Corner Protectors ( guaranteed no rust )
  • CHUBB insurance company to guarantee the quality



3> Warranty & Certification

  • Warranty: 25-year linear performance warranty and 10-year product warranty
  • Certificate: CE, CQC, IEC61525, IEC61730, TUV, CEC, MCS, BV, ISO9001
  • Insulation Class II / Safety Class II
  • CHUBB Insurance

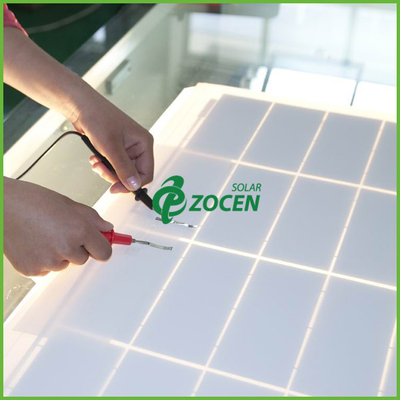

4> Quality Control

  • Robust, corrosion resistant aluminum frame independently tested to withstand wind and snow loads of up to 2400Pa and 5400Pa,respectively,ensuring mechanical stability.
  • Manufacturing facility certifed to ISO9001 Quality Management System standards.
  • Module packaging optimized to protect product during transportation and minimize on-site waste.



5> Specifications

  •  270W 36 Volt Polycrystalline Silicon Solar Panel I-V Curves

270W 36 Volt Polycrystalline Silicon Solar Panel Polycrystalline Silicon Solar Module 0



  • 270W 36 Volt Polycrystalline Silicon Solar Panel Electrical Characteristics
Maximum Power(Pmax)
 270W
Power Tolerance
 ±3%
Open Circuit Voltage(Voc)
 43.90
Short Circuit Current(Isc)

8.39
Maximum Power Voltage(Vmp)
 35.00
Maximum Power Voltage(Imp)
 7.72
Module Efficiency
 13.92%
Max. System Voltage
 1000VDC
Solar Cells

Polycrystalline156*156mm(6 inch)

Cells series
 72cs(6*12)
Bypass Diodes
 6pcs 12A
Temperature Coefficients of Pmax
 -0.47%/°C
Temperature Coefficients of Voc
 -0.33%/°C
Temperature Coefficients of Isc
 0.05%/°C
NOTC-Nominal Operating Cell Tepm.
 45℃(±2°C)
STC Condition
 1000W/m2, AM1.5, 25°C





  • 270W 36 Volt Polycrystalline Silicon Solar Panel Mechanical Characteristics
Dimension
 1956*992*45(mm)
Frame
 Anodized Aluminum Alloy
Construction

Front: High transmision 3.2mmTempered glass; Rear: White PET; Encapsulant: EVA
Output cables

4.0m㎡ 12AWG cable with weatherproof connectors.cable lengths 900mm
Weight
 22.5KGS



  • 270W 36 Volt Polycrystalline Silicon Solar Panel Packing configuration
Container
40“HQ
Module dimension
 1956*992*45mm
Pieces per pallet
 21 2
Pallets per container
 22 11
Pieces per container
 484





6> 270W 36 Volt Polycrystalline Silicon Solar Panel Application

  • Solar power station
  • Rural electrification, Small home power systems
  • Power supply for traffic, security, gas industry
  • 12V and 24V battery charging systems
  • Other industrial and commercial applications



7> 270W 36 Volt Polycrystalline Silicon Solar Panel Shipment



270W 36 Volt Polycrystalline Silicon Solar Panel Polycrystalline Silicon Solar Module 1



Shipment
