265W 1000V Monocrystalline Silicon Solar Panel Building Integrated Photovoltaic System

1> Description

• What is BIPV?

Building-Integrated Photovoltaics (BIPV) are photovoltaic systems which are built into a building, rather than being added on at a later date. Ideally, BIPV are incorporated into the design of a building in the early planning stages. The architect works with photovoltaic engineers and other experts to create a design which will be aesthetically pleasing and effective.

• BIPV Applications

1. Roof, Skylight, Facade, Sunshade, Balustrade, Floor
2. Point-fixed System, Visible Frame, Semi-visible Frame, Invisible Frame
3. Residential, Commercial, Public Buildings
4. New and Existing Construction
5. On-grid Utility and Commercial Systems

• Features of Transparent Solar Panel

1. Glass-glass module is employed directly as materials of spandrel, cladding, roof improving appeal visually
2. Sandwiched high efficiency cells gives robust performance
3. Top quality EVA interlayer ensures product warranty and safety

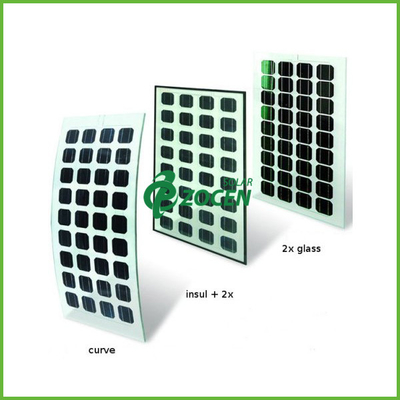

4. Frameless, tailor-made specification, variable light transmission and multi-color option enable architectural design freely

2> Products details:

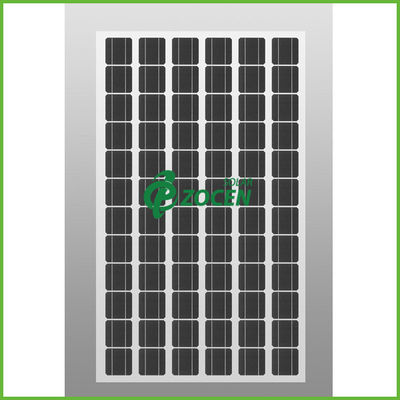

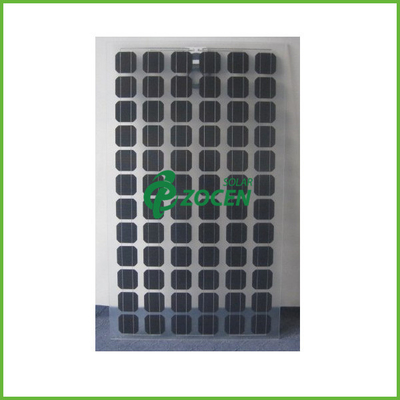

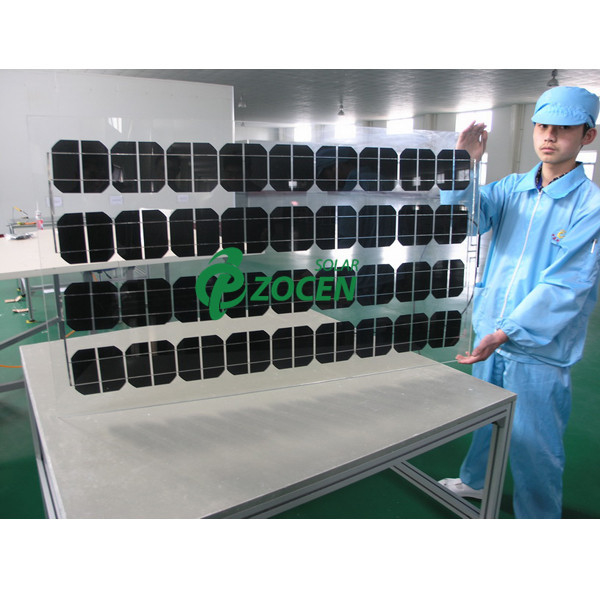

1. Product name: Transparent PV double glass solar panel / module
2. Solar cell: Mono-crystalline, Anti-reflective coating used to reduce the reflectivity and enhance transmittance.
3. Tempered Glass: Low Iron and Anti-reflective coating glass increase the power output and mechanical strength of solar module. Mechanical load ≥2400Pa , transmittance ≥91.6%
4. EVA: Anti-aging,Transmittance ≥91% , Adhesive Capacity >85%
5. Back Sheet: high frame resistant & Double-sided fluorine TPT, to prevent destroying and water , it’s reflectivity ≥87%, peeling strength ≥ 40N/cm.
6. Junction Box: IP67 rated, 3 bypass Diodes + 90cm 4mm2 Solar Cable
7. Life time: 25 years
8. Power specification at 1kW/m 2, AM 1, 5
9. Output cable: multi contact connectors
10. Resistance: 277 steel ball falls down from 1m height and 60m/s wind
11. Warranty: 10years workmanship; Guarantee the power 90% in the first 12 years; Guarantee the power 80% in 25years.
12. Certification: CE, TUV, IEC, MCS, CQC, CEC, CHUBB, BV, ISO

3> Electrical Characteristics

4> Mechanical Characteristics
