260W Anti - Reflective Coating Polycrystalline Solar Panels With 3.2mm Tempered Glass

All Products
Poly Solar Panels (147)
Mono Solar Panels (93)
Monocrystalline Solar Panels (92)
Polycrystalline Solar Panels (14)
Custom Solar Panels (55)
Double Glass Solar Panel (31)
Portable Solar Panel Chargers (114)
Home Solar Power System (126)
On Grid Solar Power System (93)
Cheap Solar Panel (54)
Solar Powered Garden Lights (137)
Mini Solar LED Lights (129)
Solar Led Street Lights (165)
Solar Home Lighting System (57)
Bi Directional Inverter (33)
I'm Online Chat Now
Certification
China China Poly Solar Panel Online Market certification
China China Poly Solar Panel Online Market certification
We trust the quality of your products. It always the best. Keep this going, and we will establish a long-term trade relationship with you.

—— Mr Zero

Cooperation is very satisfactory and the Company of the past few years, we are very willing to continue long-term cooperation.

—— Dean

The quality and service are good, delivery time is punctual every time.

—— Russian Seles

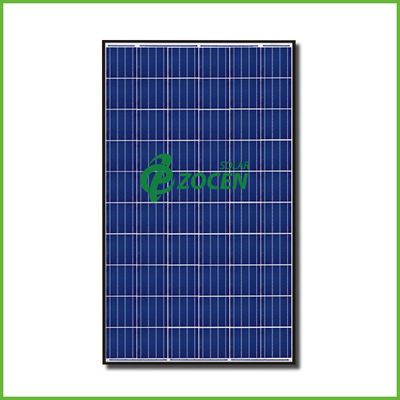

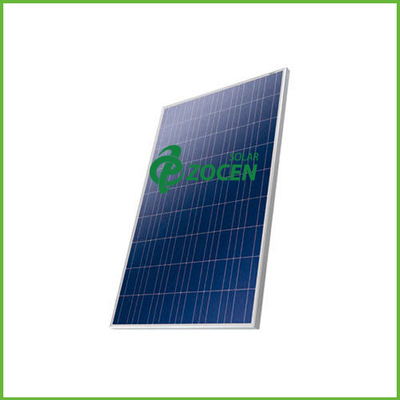

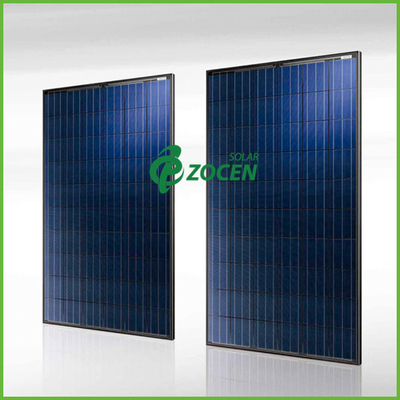

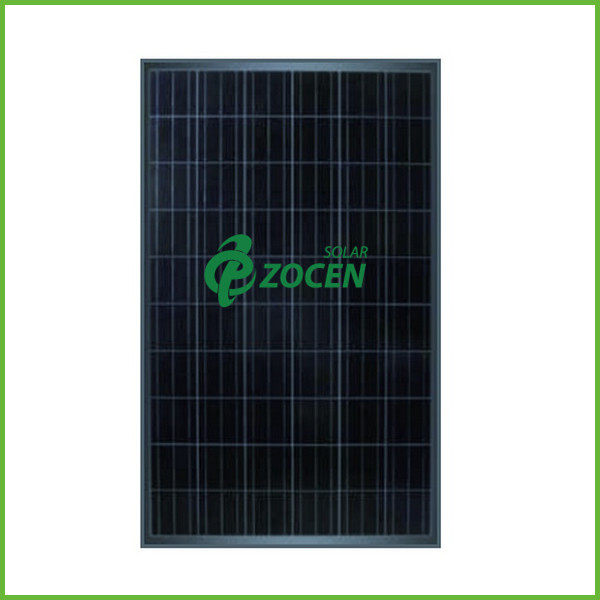

260W Anti - Reflective Coating Polycrystalline Solar Panels With 3.2mm Tempered Glass

large.img.alt
small.img.alt small.img.alt small.img.alt small.img.alt

Large Image :  260W Anti - Reflective Coating Polycrystalline Solar Panels With 3.2mm Tempered Glass Get Best Price

Product Details:
Place of Origin: China
Brand Name: ZOCEN
Certification: CE, CQC, IEC, TUV, CEC, MCS, CHUBB, BV, ISO9001
Model Number: ZCP6-60P-260W
Payment & Shipping Terms:
Minimum Order Quantity: negotiation
Price: negotiation
Packaging Details: 24 pieces per pallet
Delivery Time: 10-15 days
Payment Terms: T/T,Paypal
Supply Ability: 1500pcs / day
Contact Now
Detailed Product Description
High Light:

residential solar panels

,

solar panel kits

Product Name
 260W Polycrystalline Solar Panel
Model
 ZCP6-60P-260W
Solar Cell
 156*156mm Polycrystalline solar cells
EVA
 Anti-aging
Cells in series
 60pcs in a 6*12
Safety
 Class II
Tempered Glass
 3.2mm Low Iron & Anti-reflective coating
Size
 1640*992*45mm
Back Sheet
 reflectivity ≥87%, peeling strength ≥ 40N/cm
Life time
 25years
Aluminum Frame
 Silver Anodized aluminum alloy
Tolerance
 0~3%

























260W Anti - Reflective Coating Polycrystalline Solar Panels With 3.2mm Tempered Glass





1> Warranties

  • 10years workmanship
  • Guarantee the power 90% in the first 12 years
  • Guarantee the power 80% in 25years.
  • CHUBB insurance

2> Quality & Safety

  • Certification: CE, TUV, IEC61215, IEC61730, MCS, CQC, CEC, BV
  • ISO9001, ISO14001, ISO18001 Approval
  • Class II Safety Approval, Conformity to CE
  • Robust, corrosion resistant aluminum frame independently tested to withstand wind and snow loads of up to 2400Pa and 5400Pa,respectively,ensuring mechanical stability.
  • Packaging optimized to protect product during transportation and minimize on-site waste.



3> Features:

  • High Performance Solar Panel
  • Monocrystalline Cells
  • Low Reflection of Sunlight
  • High Light Absorption
  • Functions perfectly under low light or panel being partly shaded
  • Top Range Alloys Anodized Frame with Corner Protectors ( guaranteed no rust )



4> Specifications

  • 260W Polycrystalline Solar Panel I-V Curves

260W Anti - Reflective Coating Polycrystalline Solar Panels With 3.2mm Tempered Glass 0



  • 260W Polycrystalline Solar Panel Electrical Characteristics
Maximum Power(Pmax)
 260W
Power Tolerance
 ±3%
Open Circuit Voltage(Voc)
 37.70
Short Circuit Current(Isc)

8.81
Maximum Power Voltage(Vmp)
 30.50
Maximum Power Voltage(Imp)
 8.53
Module Efficiency
 15.98%
Max. System Voltage
 1000VDC
Solar Cells

Polycrystalline156*156mm(6 inch)

Cells series
 60cs(6*10)
Bypass Diodes
 6pcs 12A
Temperature Coefficients of Pmax
 -0.47%/°C
Temperature Coefficients of Voc
 -0.33%/°C
Temperature Coefficients of Isc
 0.05%/°C
NOTC-Nominal Operating Cell Tepm.
 45℃(±2°C)
STC Condition
 1000W/m2, AM1.5, 25°C





  • 260W Polycrystalline Solar Panel Mechanical Characteristics
Dimension
 1640*992*40(mm)
Frame
 Anodized Aluminum Alloy
Construction

Front: High transmision 3.2mmTempered glass; Rear: White PET; Encapsulant: EVA
Output cables

4.0m㎡ 12AWG cable with weatherproof connectors.cable lengths 900mm
Weight
 19.5KGS



  • 260W Polycrystalline Solar Panel Packing configuration
Container
40“HQ
Module dimension
 1640*992*40mm
Pieces per pallet
 24 4
Pallets per container
 28 14
Pieces per container
 728
