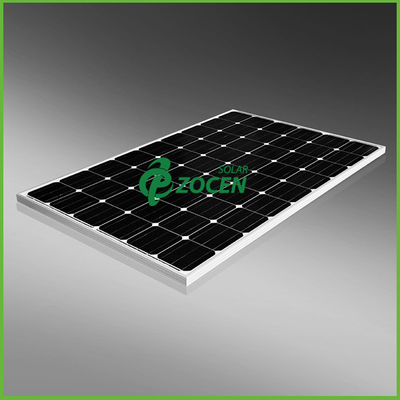

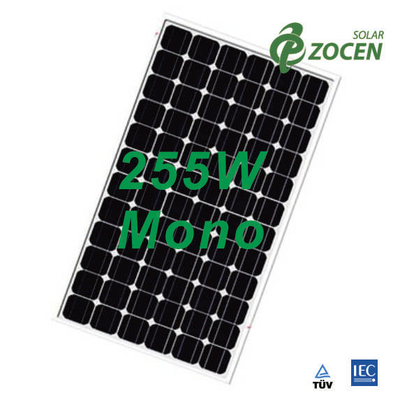

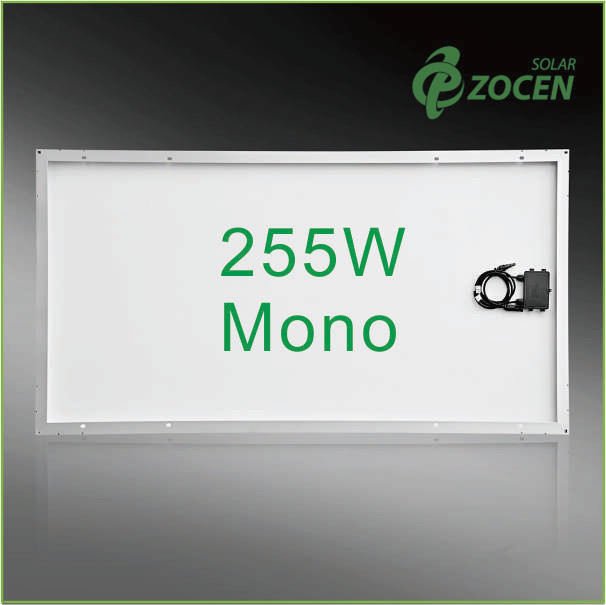

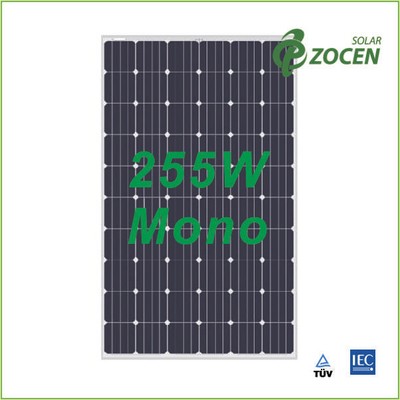

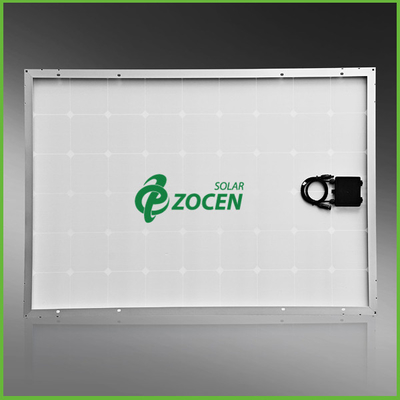

25 Years Wanrranty , Shading Tolerance , 255W Monocrystalline Solar Panels

small.img.alt small.img.alt small.img.alt small.img.alt small.img.alt

Large Image :  25 Years Wanrranty , Shading Tolerance , 255W Monocrystalline Solar Panels Get Best Price

Product Details:
Place of Origin: China
Brand Name: ZOCEN
Certification: CE, CQC, IEC, TUV, CEC, MCS, CHUBB, BV, ISO9001
Model Number: ZCM6-60P-255W
Payment & Shipping Terms:
Minimum Order Quantity: negotiation
Price: negotiation
Packaging Details: 24pcs / pallet
Delivery Time: 5-10 days
Payment Terms: Ex works, L/C, T/T, Western Union, D/A, D/P, MoneyGram
Supply Ability: 30000pcs / month
Detailed Product Description
Power: 255W Solar Cell: 156*156mm (6 Inch) Monocrystalline Silicon
Glass: 3.2mm High Transmission Tempered Frame: Anodized Aluminum Alloy
EVA: Stome Bridge Back Panel: TPT
Cable: TUV Certified 4.0m㎡ 12AWG Connector: MC4
Bypass Diodes: 6pcs 12A Weight: 19.5kgs
Dimension: 1640*990*40mm 40“HQ Quantity: 728pcs
High Light:

monocrystalline solar module


mono crystal solar panels


25 Years Warranty , Shade Tolerant , 255W Monocrystalline Solar Panels



1> Quick details

  1. Product name: 255W Monocrystalline solar panels / modules
  2. Solar cell: 156*156mm(6 inch) Mono-crystalline, Anti-reflective coating
  3. Tempered Glass: 3.2mm Low Iron and Anti-reflective coating glass Mechanical load ≥2400Pa , transmittance ≥91.6%
  4. EVA: Anti-aging,Transmittance ≥91% , Adhesive Capacity >85%
  5. Back Sheet: anti-destroying and waterproof, it’s reflectivity ≥87%, peeling strength ≥ 40N/cm.
  6. Aluminum Frame: Anodized aluminum alloy
  7. Junction Box: 6pcs 12A Diode + 90cm 4mm2 Solar Cable
  8. Life time: 25 years
  9. Certification: CE, TUV, IEC61215, IEC61730, MCS, CQC, CEC, CHUBB, BV, ISO

2> Quality & Safety


  • Rigorous quality control meeting the highest international standards
  • High-transmissivity low-iron tempered glass, strong aluminium frame Using UV-resistant silicon
  • ISO 9001:2008 ,ISO 14001:2004 and OHSAS18001
  • IEC61215,IEC61730,Safety Class II,conformity to CE
  • Top Range Alloys Anodized Frame with Corner Protectors ( guaranteed no rust )
  • CHUBB insurance company to guarantee the quality
  • Robust, corrosion resistant aluminum frame independently tested to withstand wind and snow loads of up to 2400Pa and 5400Pa,respectively,ensuring mechanical stability.
  • Panel packaging optimized to protect product during transportation and minimize on-site waste.


3> Features:

  • High Performance Solar Panel
  • Monocrystalline Cells
  • Low Reflection of Sunlight
  • High Light Absorption
  • Functions perfectly under low light or panel being partly shaded
  • Top Range Alloys Anodized Frame with Corner Protectors ( guaranteed no rust )
  • CHUBB insurance company to guarantee the quality


4> Specifications

  • 255W Monocrystalline Solar Panel Electrical Characteristics
Maximum Power(Pmax)
Power Tolerance
Open Circuit Voltage(Voc)
Short Circuit Current(Isc)
Maximum Power Voltage(Vmp)
Maximum Power Voltage(Imp)
Module Efficiency
Max. System Voltage
Solar Cells

Monocrystalline156*156mm(6 inch)

Cells series
Bypass Diodes
6pcs 12A
Temperature Coefficients of Pmax
Temperature Coefficients of Voc
Temperature Coefficients of Isc
NOTC-Nominal Operating Cell Tepm.
STC Condition
1000W/m2, AM1.5, 25°C



  • 255W Monocrystalline Solar Panel Mechanical Characteristics
Anodized Aluminum Alloy

Front: High transmision 3.2mmTempered glass; Rear: White PET; Encapsulant: EVA

Output cables

4.0m㎡ 12AWG cable with weatherproof connectors.cable lengths 900mm



  • 255W Monocrystalline Solar Panel Packing configuration
Module dimension
Pieces per pallet
24 4
Pallets per container
28 14
Pieces per container



5> 255W Monocrystalline Solar Panel Application

  • Solar power station
  • Rural electrification, Small home power systems
  • Power supply for traffic, security, gas industry
  • 12V and 24V battery charging systems
  • Other industrial and commercial applications
