245W 1000V Portable Polycrystalline Solar Module TUV / CEC / MCS , Class II Safety

large.img.alt
small.img.alt small.img.alt small.img.alt small.img.alt

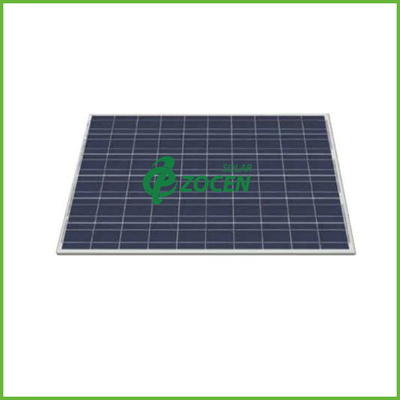

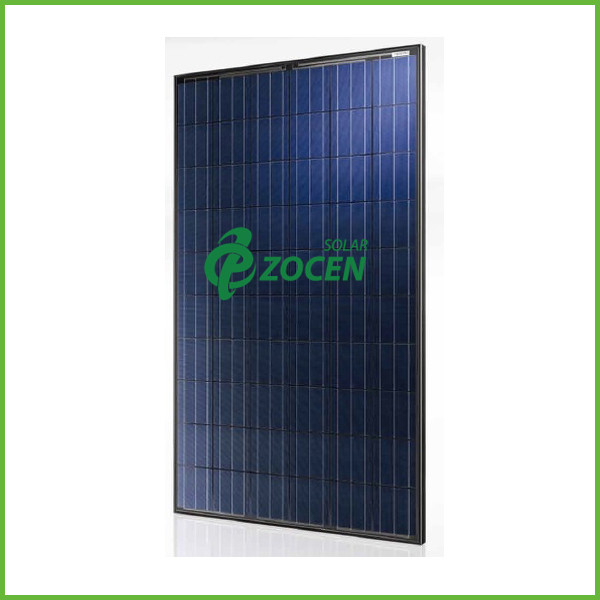

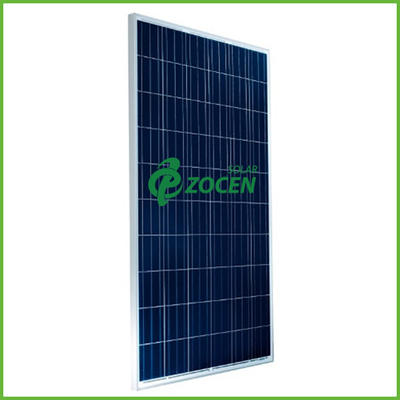

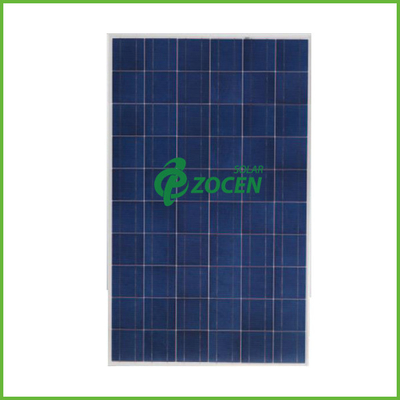

Large Image :  245W 1000V Portable Polycrystalline Solar Module TUV / CEC / MCS , Class II Safety Get Best Price

Product Details:
Place of Origin: China
Brand Name: ZOCEN
Certification: CE, CQC, IEC, TUV, CEC, MCS, CHUBB, BV, ISO9001
Model Number: ZCP6-60P-245W
Payment & Shipping Terms:
Minimum Order Quantity: negotiation
Price: negotiation
Packaging Details: 24 pieces per pallet
Delivery Time: 10-15 days
Payment Terms: T/T,Paypal
Supply Ability: 1500 pcs / month
Contact Now
Detailed Product Description
High Light:

residential solar panels

,

custom solar panels

Product Name
 245W Polysrystalline Solar Module
Model
 ZCP6-60P-245W
Materials
 156*156mm Polycrystalline solar cells
Max.power
 245W
Positive tolerance
 0~3%
Size
 1640*992*45mm
Solar panel efficiency
 14.75%
Type
 Poly
Bypass Diodes
 6pcs 12A
Warranty
 25 years
Producion Capacity
 200MW / year
Color
 Deep blue

























245W 1000V Portable Polycrystalline Solar Module TUV / CEC / MCS , Class II Safety





1> 245W Polycrystalline Solar Module Electrical Characteristics

Maximum Power(Pmax)
 245W
Power Tolerance
 ±3%
Open Circuit Voltage(Voc)
 37.20
Short Circuit Current(Isc)
 8.69
Maximum Power Voltage(Vmp)
 30.00
Maximum Power Voltage(Imp)
 8.17
Module Efficiency
 15.06%
Max. System Voltage
 1000VDC
Solar Cells

Polycrystalline156*156mm(6 inch)

Cells series
 60cs(6*10)
Bypass Diodes
 6pcs 12A
Temperature Coefficients of Pmax
 -0.47%/°C
Temperature Coefficients of Voc
 -0.33%/°C
Temperature Coefficients of Isc
 0.05%/°C
NOTC-Nominal Operating Cell Tepm.
 45℃(±2°C)
STC Condition
 1000W/m2, AM1.5, 25°C





2> 245W Polycrystalline Solar Module Mechanical Characteristics

Dimension
 1640*992*40(mm)
Frame
 Anodized Aluminum Alloy
Construction

Front: High transmision 3.2mmTempered glass; Rear: White PET; Encapsulant: EVA
Output cables

4.0m㎡ 12AWG cable with weatherproof connectors.cable lengths 900mm
Weight
 19.5KGS





3> 245W Polycrystalline Solar Module Packing configuration

Container
40“HQ
Module dimension
 1640*992*40mm
Pieces per pallet
 24 4
Pallets per container
 28 14
Pieces per container
 728





4> 245W Polycrystalline Solar Module I-V Curves

245W 1000V Portable Polycrystalline Solar Module TUV / CEC / MCS , Class II Safety 0





5> Warranties & Safety

  •  25-year linear performance warranty:12-year for 90% of warranted minimum power;
    25-year for 80% of warranted minimum power
  • 10-year product warranty or workmanship warranty
  • Comformity with CE, Class II Safety.



6> Certification

           245W 1000V Portable Polycrystalline Solar Module TUV / CEC / MCS , Class II Safety 1





8> ZOCEN SOLAR Overview








245W 1000V Portable Polycrystalline Solar Module TUV / CEC / MCS , Class II Safety 2

Zocen Engineer Team
