200 Watt Anti - Aging EVA Monocrystalline Solar Panels For Rooftop / Camping

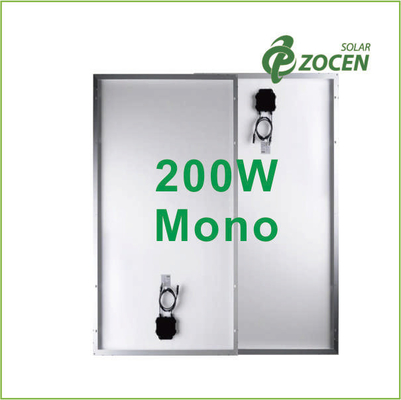

Large Image : 200 Watt Anti - Aging EVA Monocrystalline Solar Panels For Rooftop / Camping Get Best Price

Product Details:

Place of Origin:	China
Brand Name:	ZOCEN
Certification:	CE, CQC, IEC, TUV, CEC, MCS, CHUBB, BV, ISO9001
Model Number:	ZCM5-72P-200W

Payment & Shipping Terms:

Minimum Order Quantity:	negotiation
Price:	negotiation
Packaging Details:	12 pieces per box, 2 boxes per carton
Delivery Time:	5-10 days
Payment Terms:	Ex works
Supply Ability:	30000 pcs /month

Contact Now

Detailed Product Description

High Light:

monocrystalline solar module

mono crystal solar panels

200 Watt Anti - Aging EVA Monocrystalline Solar Panels For Rooftop / Camping

1> Quick Detail:

Materials	125*125mm Monocrystalline solar cells	Max.power	200W
Positive tolerance	0~3%	Size	158080835mm
Solar panel efficiency	15.67%	Type	Mono
Bypass Diodes	3pcs 12A	Warranty	25 years
Producion Capacity	200MW / year	Color	Deep blue

2> Description:

Product name: Monocrystalline solar panels / modules / photovoltaic solar panels / PV solar panels
Solar cell: Mono-crystalline, Anti-reflective coating used to reduce the reflectivity and enhance transmittance.
Tempered Glass: 3.2mm Low Iron and Anti-reflective coating glass increase the power output and mechanical strength of solar module. Mechanical load ≥2400Pa , transmittance ≥91.6%
EVA: Anti-aging,Transmittance ≥91% , Adhesive Capacity >85%
Back Sheet: high frame resistant & Double-sided fluorine TPT, to prevent destroying and water, it’s reflectivity ≥87%, peeling strength ≥ 40N/cm.
Aluminum Frame: Anodized aluminum alloy to effectively improve the corrosion resistance and strength
Junction Box: 3pcs 12A Diode + 90cm 4mm2 Solar Cable
Life time: 25 years
Power specification at 1kW/m 2, AM 1, 5
Output cable: multi contact connectors
Warranty: 10years workmanship; Guarantee the power 90% in the first 12 years; Guarantee the power 80% in 25years.
Certification: CE, TUV, IEC, MCS, CQC, CEC, CHUBB, BV, ISO

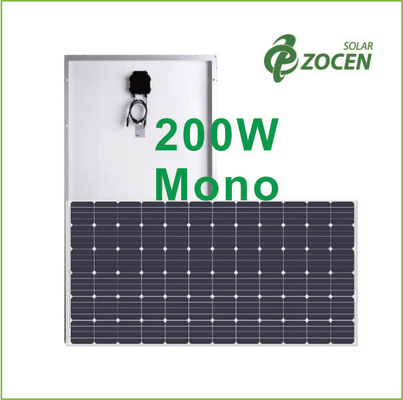

200 Watt Anti - Aging EVA Monocrystalline Solar Panels For Rooftop / Camping 0

3> Features:

High Performance Solar Panel
Monocrystalline Cells
Low Reflection of Sunlight
High Light Absorption
Functions perfectly under low light or panel being partly shaded
Top Range Alloys Anodized Frame with Corner Protectors ( guaranteed no rust )
CHUBB insurance company to guarantee the quality

4> Specifications

I-V Curves

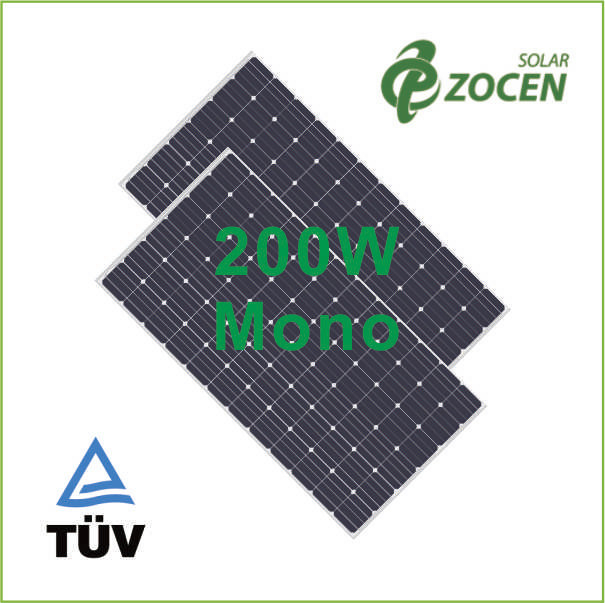

200 Watt Anti - Aging EVA Monocrystalline Solar Panels For Rooftop / Camping 1

Electrical Characteristics

Maximum Power(Pmax)	200
Power Tolerance	±3%
Open Circuit Voltage(Voc)	45.4
Short Circuit Current(Isc)	5.71
Maximum Power Voltage(Vmp)	37.10
Maximum Power Voltage(Imp)	5.4
Module Efficiency	15.67%
Max. System Voltage	1000VDC
Solar Cells	Monocrystalline125*125mm(5 inch)
Cells series	72pcs(6*12)
Bypass Diodes	3pcs 12A
Temperature Coefficients of Pmax	-0.47%/°C
Temperature Coefficients of Voc	-0.35%/°C
Temperature Coefficients of Isc	0.05%/°C
NOTC-Nominal Operating Cell Tepm.	45℃(±2°C)
STC Condition	1000W/m2, AM1.5, 25°C

Engineering Drawing

Mechanical Characteristics

Dimension	158080835(mm)
Frame	Anodized Aluminum Alloy
Construction	Front: High transmision 3.2mmTempered glass; Rear: White PET; Encapsulant: EVA
Output cables	4.0m㎡ 12AWG cable with weatherproof connectors.cable lengths 900mm
Weight	15.5KGS

Packing configuration

Container	20“GP	40“GP	40“HQ
Module dimension	158080835mm
Pieces per pallet (12 pallets / Container )	24	28	28
Pieces per box ( 2 boxes / pallet )	12	28	56
Pieces per container	312	728	784

5> Production and Quality Control

Solar Panels Warranty

Production process

Quality control

Robust, corrosion resistant aluminum frame independently tested to withstand wind and snow loads of up to 2400Pa and 5400Pa,respectively,ensuring mechanical stability.
Manufacturing facility certifed to ISO9001 Quality Management System standards.
Module packaging optimized to protect product during transportation and minimize on-site waste.

6> Crystallines Solar Panel Application
