|Solar Panel ( Monocrystalline ):||18.4V/100W||Maintenance Free Lead-acid Battery:||12V/55AH|
|Solar Controller:||12V/10A||Radio Play (MINI Audio ):||MP3 Player , Radio|
residential solar power systems,
commercial solar power systems

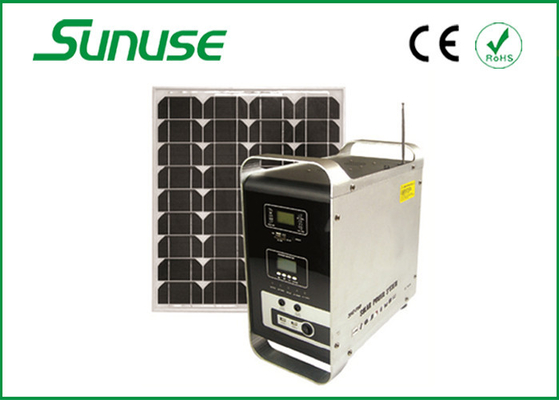

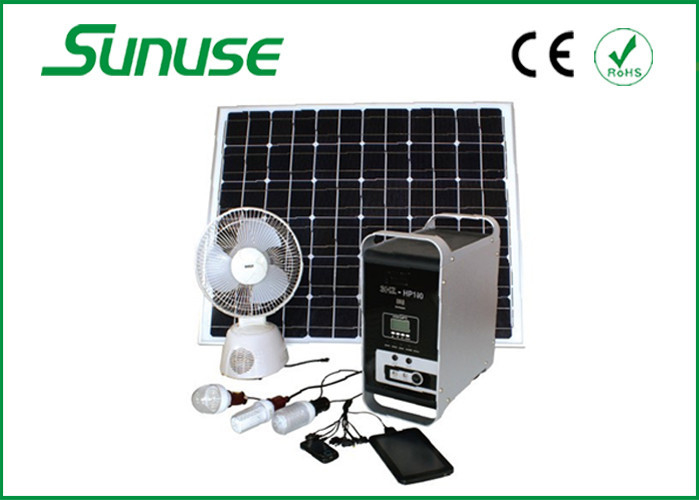

100W e home solar power system with safe us easy carry for houses in rural area
1. Solar module – converts sunlight into electricity
2. Lead acid battery – stores the solar energy
3. System controller – protects the battery
4. LED display – displays the status of system
5. USB sockets – to charge cell phones and other electronic applications
6. Integrated Radio&MP3 – to receive radio channels on the FM/AM
|Configuration Name||Configuration Parameters|
|Solar panel ( monocrystalline )||18.4V/100W|
|Maintenance free Lead-acid Battery||12V/55AH|
|Radio Play (MINI audio )||MP3 player , radio|
|Host Output voltage||USB Output:5V/2A (Max.)||Number of Ports:2|
|DC Output:12V/10A (Max.)||Number of Ports:2|
|AC Output:220V/300W (Pure sine wave)||Number of Ports:2|
|Charge way||Solar panel|
|Host size||400*210*432mm||Solar panel size||1030*665*30mm|
|Host Weight||28.2kg||Solar panel Weight||8kg|
|LED Lamp+5m lamp cable||12V/3W|
|DC fan||12V/12" (12W)|
|DC LED TV||12V/17" (30W)|
|Load electricity Reference Table|
|Load Name||Power(W)||Quantity (pcs)||Work time(H)|
|12" DC fan||12W||1||6|
|17" DC LED TV||30W||1||5|
|Total power||Storage capacity equivalent to 0.3degrees every day .|
Our new solar power system integrates stereo receiver, MP3 Player with audio speaker. Of course, its basic function is to generate electricity. The solar power system possesses LCD, volume controller, switch, LED indicator light and high-quality audio speaker, etc. It is humanized, energy saving and environmentally friendly. Also, the solar power system is easy to use.
HMP100W Solar Power System is specially designed for houses in rural area where grid electricity is unavailable. The system has advantages of automatic self-control and self-protect, best configuration, stable quality, noise-free, easy to install, easy to use, and long-lifetime.
Intelligent Charging Control - The system automates battery charging process in different modes, enhance charge, direct charge or float charge to extend battery lifetime.
Energy Saver - When the inverter system detects no AC output for 5 mins, it will shutdown DC - AC inverter feature to minimize internal power consumption.
Smart Soft-Start control - The inverter system is designed to accept high-resistance shock loads to ensure normal startup and power output capability
About your service:
Now we have Solar Power systems from 30Watt to 3200watt different one, and we can make customize solar system according to demand, and our warranty is one year. For bigger solar system, if needed our engineer can go to your local to help installation, and we will support spare parts and technology support after sale.
Payment Term: L/C,D/A,D/P,T/T, Western Union, MoneyGram, Paypal, Escrow, e-Credit Line
Leading time: 3-7 working days for sample, about 15-20 working days for bulk
Warranty: (Battery not including) one year
