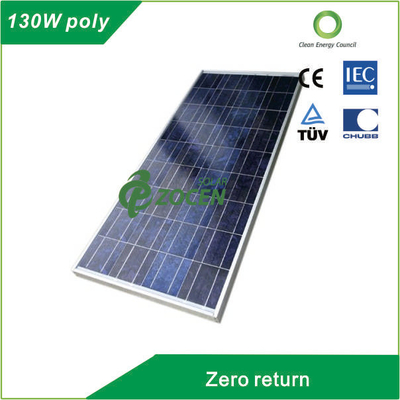

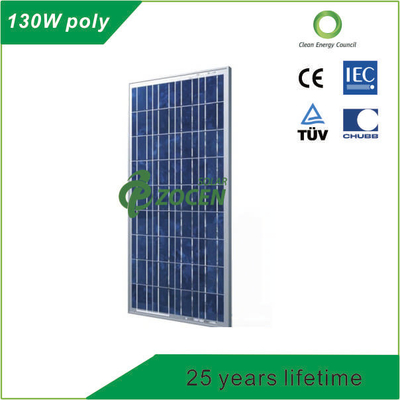

130 W 18V Poly Solar Panel Safety IEC61250 / IEC61730 Certified

small.img.alt small.img.alt small.img.alt small.img.alt

Large Image :  130 W 18V Poly Solar Panel Safety IEC61250 / IEC61730 Certified Get Best Price

Product Details:
Place of Origin: China
Brand Name: ZOCEN
Certification: CE, CQC, IEC, TUV, CEC, MCS, CHUBB, BV, ISO9001
Model Number: ZCP6-36P-130W
Payment & Shipping Terms:
Minimum Order Quantity: negotiation
Price: negotiation
Packaging Details: 24 pieces per pallet
Delivery Time: 5-10 days
Payment Terms: Ex works
Supply Ability: 30000pcs / month
Detailed Product Description
Solar Cell: A Grade Glass: 3.2mm Low Iron Tempered Glass
Frame: Anodized Aluminum Alloy Safety Class: Class II , IEC61215 Standard
Snow Load: 5400Pa Wind Load: 2400Pa
High Light:

polycrystalline solar module


polycrystalline silicon solar panel

130 W 18V Poly Solar Panel Safety IEC61250 / IEC61730 Certified


1> Quick Details


Product Name
130W Polycrystalline Solar Panel
Solar Cell
156*156mm Polycrystalline solar cells
Tempered Glass
3.2mm Low Iron & Anti-reflective coating
Back Sheet
Double-sided fluorine TPT
Life time
Aluminum Frame
Anodized aluminum alloy












2> Specifications

  • 130W Polycrystalline Solar Panel Electrical Characteristics
  1. Maximum Power(Pmax): 130W
  2. Power Tolerance: 0~+3%
  3. Open Circuit Voltage(Voc): 21.60V
  4. Short Circuit Current(Isc): 8.24A
  5. Maximum Power Voltage(Vmp): 17.80V
  6. Maximum Power Voltage(Imp): 7.30A
  7. Max. System Voltage: IEC:1000V / UL:600V


  • 220W Polycrystalline Solar Panel Mechanical Characteristics
Solar Cells
36(4×9) polycrystalline cells156mm
Front Cover
3.2mmthick low iron tempered glass
Back Cover
EVA(Ethylene vinyl acetate)
Anodized aluminum alloy, double wall
3 Bypass diodes serviceable
Junction Box
IP65 rated, TUV certification
MC4 or compatible connector
Max Load


  • 220W Polycrystalline Solar Panel Packing configuration
Module dimension
Pieces per pallet
31 15
Pallets per container
14 7
Pieces per container



3> Quality Control

  • ISO 9001:2008 ,ISO 14001:2004 and OHSAS18001
  • IEC61215,IEC61730,Safety Class II,conformity to CE
  • Top Range Alloys Anodized Frame with Corner Protectors ( guaranteed no rust )
  • CHUBB insurance company to guarantee the quality
  • Robust, corrosion resistant aluminum frame independently tested to withstand wind and snow loads of up to 2400Pa and 5400Pa,respectively,ensuring mechanical stability.

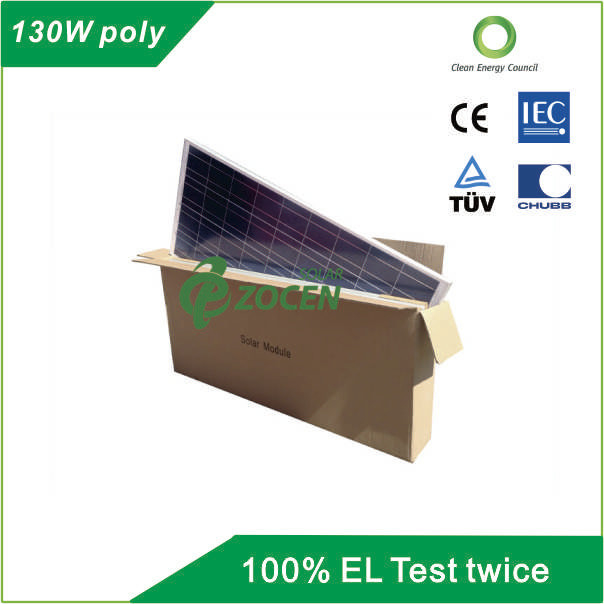

  • Panel packaging optimized to protect product during transportation and minimize on-site waste.


4>  Features:

  • Excellent low light performance on cloudy days, mornings and evenings due to anti-reflective coating
  • Ideal for large scale installations: High power footprint reduces installation time and BOS costs
  • Certified to withstand challenging environmental conditions: 2400Pa wind load; 5400Pa snow load; 35mm hail stone at 97km/hr
  • IP68 connectors enhance the reliablity of the PV system
  • Blowing sand resistance certification
  • Anti-PID
  • Fire test certification
  • Ammonia corrosion certification
  • Salt mist corrosion certification



5> Techinical points of Solar Panels

  • Power Tolerance

This refers to the percentage variation in the panel’s power production. A positive power tolerance means that the panel will produce at or above what it is labelled. E.g. a 200W with a 5% positive power tolerance will produce anywhere between 200W and 210W. The same panel with a negative power tolerance will produce anywhere between 190W and 200W.Solar cells with a positive power tolerance are selected by higher quality manufactures and generally indicates a higher quality panel.

  • Temperature Co-efficient

As counterintuitive as it sounds; solar panels don’t work as well in higher temperatures. A measure of how much production a panels loses once it gets hotter than 40 degrees is the Temperature Co-efficient. For every 1 degree over 40 degrees, Suntech panels for example will lose 0.45% production – This is around what most panels lose so don’t be too concerned plus this is factored into the productions figures given for each city.When looking at panels, go for one with a lower percentage or temperature co-efficient as it indicates a better quality panel.
